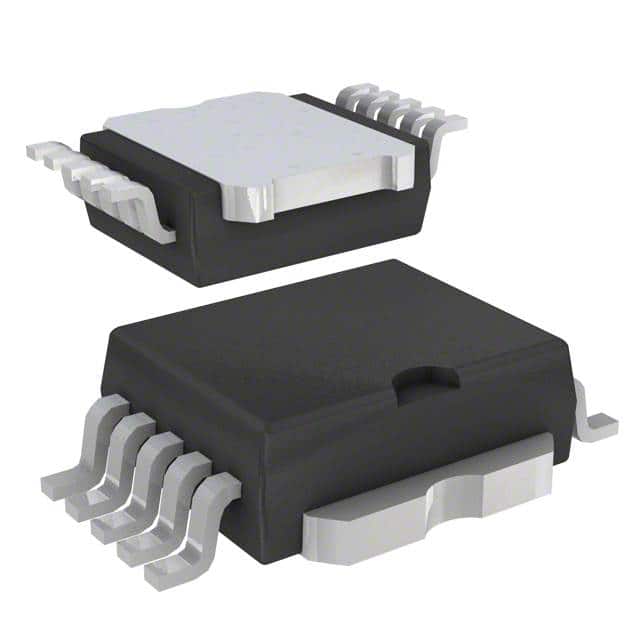

VND830SPTR-E
IC PWR DRIVER N-CHAN 1:1 PWRSO10Manufacturer: STMicroelectronics
Categories: Power Distribution Switches, Load Drivers
Quality Control: Learn More
STMicroelectronics VIPower™ VND830SPTR-E is a dual-channel high-side driver designed for robust power management. This N-channel MOSFET driver offers a 1:1 input-to-output ratio and can deliver up to 6A per channel. Key features include integrated current limiting (fixed), over-temperature protection, over-voltage protection, and open-load detection. The device also incorporates an auto-restart function for fault recovery. With a low on-resistance of 60mOhm (typ), it is suitable for applications demanding efficient power switching. The VND830SPTR-E operates across a wide voltage range from 5.5V to 36V and is packaged in a 10-PowerSO surface-mount configuration. This component finds application in automotive systems, industrial automation, and general power distribution.
Additional Information
Series: VIPower™RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Features | Auto Restart |
| Packaging | Tape & Reel (TR) |
| Package / Case | PowerSO-10 Exposed Bottom Pad |
| Output Type | N-Channel |
| Mounting Type | Surface Mount |
| Number of Outputs | 2 |
| Interface | ON/OFF |
| Switch Type | General Purpose |
| Operating Temperature | -40°C ~ 150°C (TJ) |
| Output Configuration | High Side |
| Rds On (Typ) | 60mOhm (Max) |
| Input Type | Non-Inverting |
| Voltage - Load | 5.5V ~ 36V |
| Voltage - Supply (Vcc/Vdd) | Not Required |
| Current - Output (Max) | 6A |
| Ratio - Input:Output | 1:1 |
| Supplier Device Package | 10-PowerSO |
| Fault Protection | Current Limiting (Fixed), Open Load Detect, Over Temperature, Over Voltage |
