VND7012AYTR
IC PWR DRVR N-CHAN 1:1 PWRSSO36Manufacturer: STMicroelectronics
Categories: Power Distribution Switches, Load Drivers
Quality Control: Learn More
STMicroelectronics VIPOWER™ VND7012AYTR is a high-performance automotive-grade power switch/driver designed for demanding applications. This device features two N-channel outputs in a 1:1 configuration, capable of delivering a maximum continuous output current of 60A. The VND7012AYTR integrates comprehensive fault protection mechanisms, including fixed current limiting, open load detection, over-temperature protection, over-voltage protection, and undervoltage lockout (UVLO). It provides a status flag for monitoring output conditions and operates across a wide temperature range of -40°C to 150°C (TJ). The component is housed in a compact 36-PowerBFSOP (PowerSSO-36 EPD) package suitable for surface mounting. Its robust design and AEC-Q100 qualification make it ideal for automotive power distribution and load driving applications.
Additional Information
Series: VIPower™RoHS Status: ROHS3 CompliantManufacturer Lead Time: 26 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Features | Status Flag |
| Packaging | Tape & Reel (TR) |

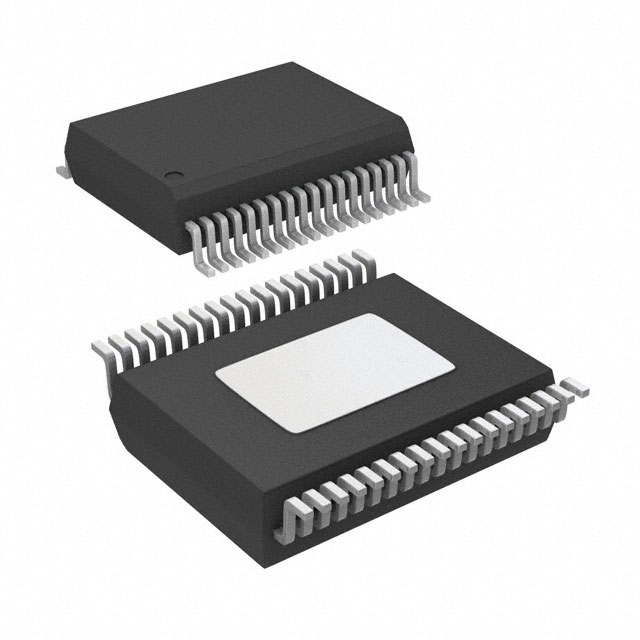

| Package / Case | 36-PowerBFSOP (0.295"", 7.50mm Width) |
| Output Type | N-Channel |
| Mounting Type | Surface Mount |
| Number of Outputs | 2 |
| Interface | ON/OFF |
| Switch Type | General Purpose |
| Operating Temperature | -40°C ~ 150°C (TJ) |
| Output Configuration | High Side |
| Rds On (Typ) | 12mOhm |
| Input Type | Non-Inverting |
| Voltage - Load | 4V ~ 28V |
| Voltage - Supply (Vcc/Vdd) | Not Required |
| Current - Output (Max) | 60A |
| Ratio - Input:Output | 1:1 |
| Supplier Device Package | PowerSSO-36 EPD |
| Fault Protection | Current Limiting (Fixed), Open Load Detect, Over Temperature, Over Voltage, UVLO |
| Grade | Automotive |
| Qualification | AEC-Q100 |
