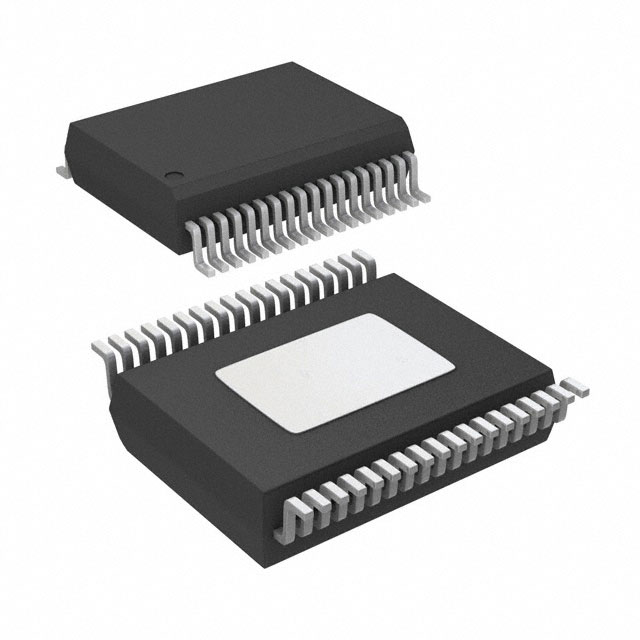

VND7004AYTR
IC PWR SWTCH N-CHAN 1:1 PWRSSO36Manufacturer: STMicroelectronics
Categories: Power Distribution Switches, Load Drivers
Quality Control: Learn More
STMicroelectronics VND7004AYTR is a dual-channel, high-side power switch with N-channel MOSFETs. This AEC-Q100 qualified component is designed for automotive applications and features a low Rds(on) of 4mOhm typical. The device offers robust fault protection, including fixed current limiting, open load detection, over-temperature shutdown, over-voltage protection, and undervoltage lockout (UVLO). A status flag provides output condition monitoring. The VND7004AYTR supports a load voltage range of 4V to 28V and can deliver up to 100A output current. Its interface is a simple ON/OFF control. The component is supplied in a 36-PowerBFSOP (PowerSSO-36 EPD) package for surface mounting and operates across an extended temperature range of -40°C to 150°C. This device is suitable for power distribution and load driving in demanding automotive electronic systems.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 26 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Download Free CAD Model:
Technical Details:
| Features | Status Flag |
| Packaging | Tape & Reel (TR) |
| Package / Case | 36-PowerBFSOP (0.295"", 7.50mm Width) |
| Output Type | N-Channel |
| Mounting Type | Surface Mount |
| Number of Outputs | 2 |
| Interface | ON/OFF |
| Switch Type | General Purpose |
| Operating Temperature | -40°C ~ 150°C (TJ) |
| Output Configuration | High Side |
| Rds On (Typ) | 4mOhm |
| Input Type | Non-Inverting |
| Voltage - Load | 4V ~ 28V |
| Voltage - Supply (Vcc/Vdd) | Not Required |
| Current - Output (Max) | 100A |
| Ratio - Input:Output | 1:1 |
| Supplier Device Package | PowerSSO-36 EPD |
| Fault Protection | Current Limiting (Fixed), Open Load Detect, Over Temperature, Over Voltage, UVLO |
| Grade | Automotive |
| Qualification | AEC-Q100 |
