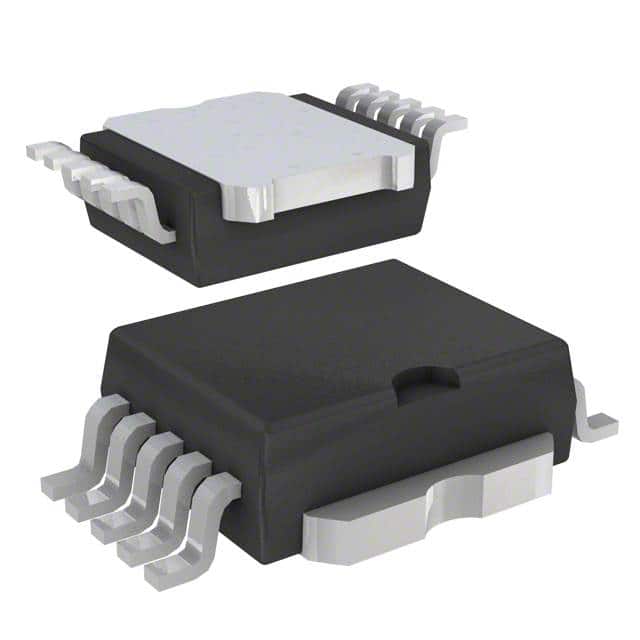

VND600SPTR-E
IC PWR DRIVER N-CHAN 1:1 PWRSO10Manufacturer: STMicroelectronics
Categories: Power Distribution Switches, Load Drivers
Quality Control: Learn More
The STMicroelectronics VND600SPTR-E is a dual-channel high-side driver designed for demanding applications requiring robust power control. This N-channel MOSFET driver features a 1:1 input-to-output ratio and is capable of delivering up to 25A per channel. Built with integrated current limiting (fixed), over-temperature, and over-voltage protection, it ensures reliable operation in challenging environments. The device operates within a load voltage range of 5.5V to 36V and boasts a typical ON-resistance of 30mOhm. Its surface-mount 10-PowerSO package with an exposed bottom pad facilitates efficient thermal management. The VND600SPTR-E is commonly employed in automotive systems, industrial automation, and power distribution applications. It interfaces via a simple ON/OFF control.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Tape & Reel (TR) |
| Package / Case | PowerSO-10 Exposed Bottom Pad |
| Output Type | N-Channel |
| Mounting Type | Surface Mount |
| Number of Outputs | 2 |
| Interface | ON/OFF |
| Switch Type | General Purpose |
| Operating Temperature | -40°C ~ 150°C (TJ) |
| Output Configuration | High Side |
| Rds On (Typ) | 30mOhm (Max) |
| Input Type | Non-Inverting |
| Voltage - Load | 5.5V ~ 36V |
| Voltage - Supply (Vcc/Vdd) | Not Required |
| Current - Output (Max) | 25A |
| Ratio - Input:Output | 1:1 |
| Supplier Device Package | 10-PowerSO |
| Fault Protection | Current Limiting (Fixed), Over Temperature, Over Voltage |
