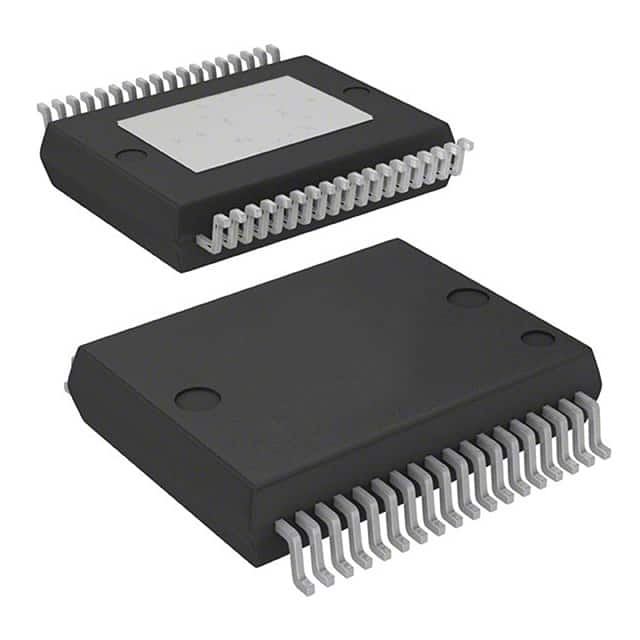

VND5E025AYTR-E
IC PWR DRVR N-CHAN 1:1 PWRSSO36Manufacturer: STMicroelectronics
Categories: Power Distribution Switches, Load Drivers
Quality Control: Learn More
The STMicroelectronics VIPOWER™ VND5E025AYTR-E is a dual-channel, high-side power driver in a PowerSSO-36 EPD package. This N-channel device features a 1:1 input-to-output ratio and is designed for applications requiring robust power switching capabilities. With a maximum output current of 33A and a typical Rds On of 25mOhm, it offers efficient load management. The VND5E025AYTR-E incorporates comprehensive fault protection, including fixed current limiting, over-temperature, and over-voltage protection, complemented by an auto-restart feature. Its interface is a simple ON/OFF control. This component is qualified to AEC-Q100 standards, making it suitable for demanding automotive applications. Operating across a wide temperature range of -40°C to 150°C (TJ), it is supplied in Tape & Reel packaging.
Additional Information
Series: VIPower™RoHS Status: ROHS3 CompliantManufacturer Lead Time: 26 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Features | Auto Restart |
| Packaging | Tape & Reel (TR) |
| Package / Case | 36-PowerFSOP (0.295"", 7.50mm Width) |
| Output Type | N-Channel |
| Mounting Type | Surface Mount |
| Number of Outputs | 2 |
| Interface | ON/OFF |
| Switch Type | General Purpose |
| Operating Temperature | -40°C ~ 150°C (TJ) |
| Output Configuration | High Side |
| Rds On (Typ) | 25mOhm |
| Input Type | Non-Inverting |
| Voltage - Load | 4.5V ~ 28V |
| Voltage - Supply (Vcc/Vdd) | Not Required |
| Current - Output (Max) | 33A |
| Ratio - Input:Output | 1:1 |
| Supplier Device Package | PowerSSO-36 EPD |
| Fault Protection | Current Limiting (Fixed), Over Temperature, Over Voltage |
| Grade | Automotive |
| Qualification | AEC-Q100 |
