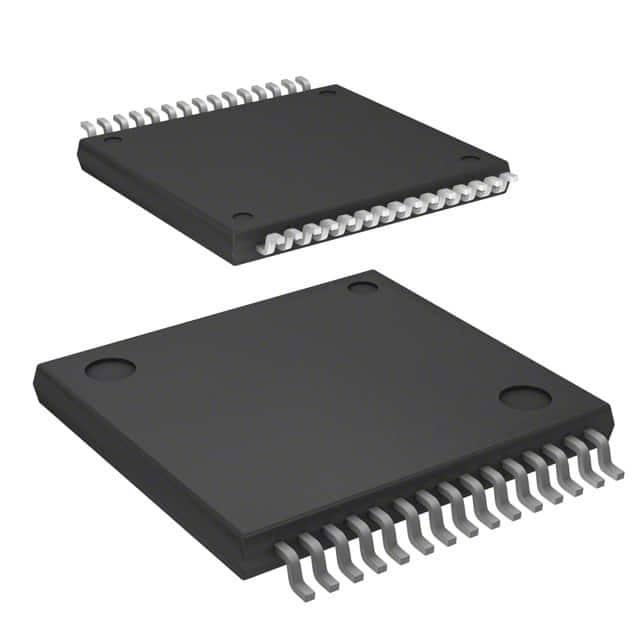

VND5E004A30TR-E
IC PWR SWITCH N-CHAN 1:1 PWRSO30Manufacturer: STMicroelectronics
Categories: Power Distribution Switches, Load Drivers
Quality Control: Learn More
STMicroelectronics VND5E004A30TR-E is a VIPower™ series N-channel power switch designed for high-side load driving applications. This device features two independently controlled outputs, each capable of handling a maximum continuous output current of 65A. The switch offers a low on-resistance of 3mOhm (typical) and operates within a load voltage range of 4.5V to 28V. Integrated fault protection includes fixed current limiting, open load detection, over-temperature protection, and over-voltage protection. The device incorporates an auto-restart feature and utilizes a non-inverting input interface for ON/OFF control. Packaged in a 30-MultiPowerSO surface-mount configuration, it is supplied on tape and reel. This component is commonly utilized in automotive and industrial automation sectors for robust power distribution and load management.
Additional Information
Series: VIPower™RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Features | Auto Restart |
| Packaging | Tape & Reel (TR) |
| Package / Case | 30-PowerSOP (0.630"", 16.00mm Width) |
| Output Type | N-Channel |
| Mounting Type | Surface Mount |
| Number of Outputs | 2 |
| Interface | ON/OFF |
| Switch Type | General Purpose |
| Operating Temperature | -40°C ~ 150°C (TJ) |
| Output Configuration | High Side |
| Rds On (Typ) | 3mOhm |
| Input Type | Non-Inverting |
| Voltage - Load | 4.5V ~ 28V |
| Voltage - Supply (Vcc/Vdd) | Not Required |
| Current - Output (Max) | 65A |
| Ratio - Input:Output | 1:1 |
| Supplier Device Package | 30-MultiPowerSO |
| Fault Protection | Current Limiting (Fixed), Open Load Detect, Over Temperature, Over Voltage |
