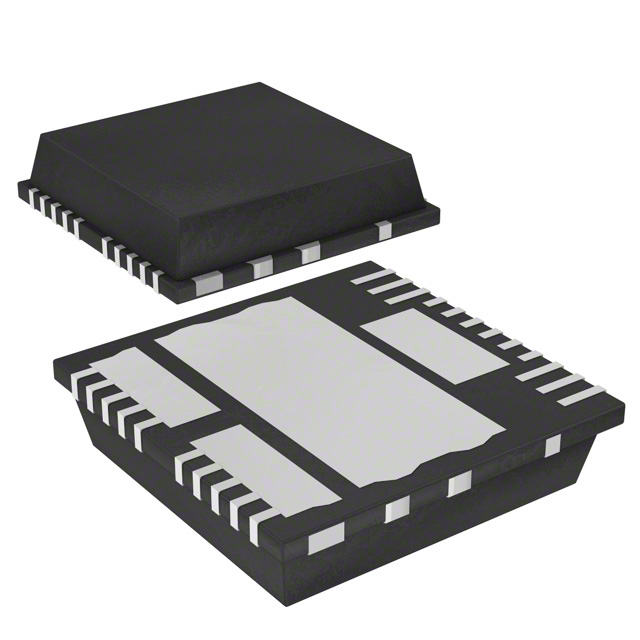

VND5E004A-E
IC PWR DRIVER N-CHAN 1:1 24PQFNManufacturer: STMicroelectronics
Categories: Power Distribution Switches, Load Drivers
Quality Control: Learn More
STMicroelectronics VIPower™ VND5E004A-E is a dual-channel, high-side power driver featuring N-channel MOSFET outputs. This component provides robust load current control with a maximum output current capability of 65A. Integrated fault protection mechanisms include fixed current limiting, open load detection, over-temperature shutdown, and over-voltage protection, enhancing system reliability. The device incorporates an auto-restart feature for transient fault conditions. Designed for general-purpose switching applications, it operates across a voltage load range of 4.5V to 28V. The input interface is a simple ON/OFF control, with a non-inverting input type. With a low on-resistance (Rds On) of 3mOhm typically, it minimizes power dissipation. The VND5E004A-E is packaged in a 24-PQFN (12x12) format suitable for surface mounting. This solution finds application in automotive and industrial power distribution systems requiring high-current switching and comprehensive protection.
Additional Information
Series: VIPower™RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TrayDatasheet:Download Free CAD Model:
Technical Details:
| Features | Auto Restart |
| Packaging | Tray |
| Package / Case | 24-PowerDFN |
| Output Type | N-Channel |
| Mounting Type | Surface Mount |
| Number of Outputs | 2 |
| Interface | ON/OFF |
| Switch Type | General Purpose |
| Operating Temperature | -40°C ~ 150°C (TJ) |
| Output Configuration | High Side |
| Rds On (Typ) | 3mOhm |
| Input Type | Non-Inverting |
| Voltage - Load | 4.5V ~ 28V |
| Voltage - Supply (Vcc/Vdd) | Not Required |
| Current - Output (Max) | 65A |
| Ratio - Input:Output | 1:1 |
| Supplier Device Package | 24-PQFN (12x12) |
| Fault Protection | Current Limiting (Fixed), Open Load Detect, Over Temperature, Over Voltage |
