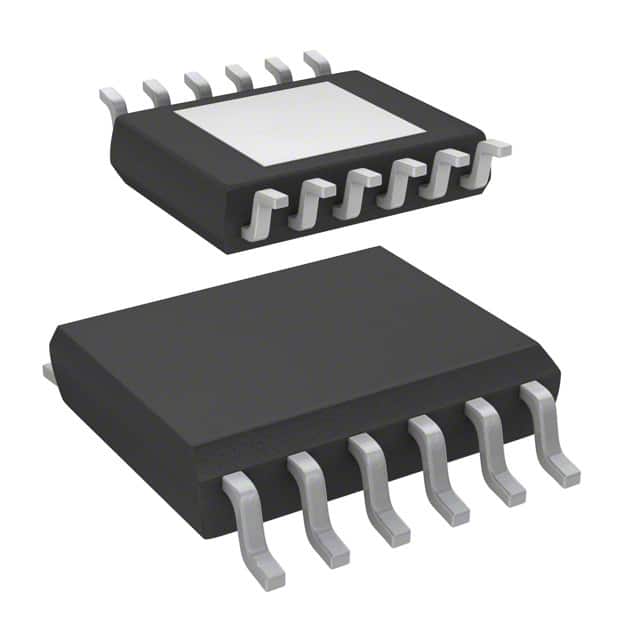

VND5050J-E
IC PWR DRVR N-CHAN 1:1 PWRSSO12Manufacturer: STMicroelectronics
Categories: Power Distribution Switches, Load Drivers
Quality Control: Learn More
STMicroelectronics VND5050J-E is a dual-channel, high-side power driver from the VIPower™ series. This N-channel MOSFET driver, housed in a PowerSSO-12™ package, supports a load voltage range of 4.5V to 36V with a maximum output current of 12A per channel. Key fault protection features include fixed current limiting, open-load detection, over-temperature shutdown, and over-voltage protection. The device offers auto-restart functionality and a status flag for monitoring output conditions. Designed for general-purpose switching applications, the VND5050J-E is suitable for automotive and industrial automation systems where robust power control and protection are critical. Its low Rds(on) of 50mOhm (typ) contributes to efficient operation.
Additional Information
Series: VIPower™RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TubeDatasheet:Download Free CAD Model:
Technical Details:
| Features | Auto Restart, Status Flag |
| Packaging | Tube |
| Package / Case | PowerSSO-12 |
| Output Type | N-Channel |
| Mounting Type | Surface Mount |
| Number of Outputs | 2 |
| Interface | ON/OFF |
| Switch Type | General Purpose |
| Operating Temperature | -40°C ~ 150°C (TJ) |
| Output Configuration | High Side |
| Rds On (Typ) | 50mOhm (Max) |
| Input Type | Non-Inverting |
| Voltage - Load | 4.5V ~ 36V |
| Voltage - Supply (Vcc/Vdd) | Not Required |
| Current - Output (Max) | 12A |
| Ratio - Input:Output | 1:1 |
| Supplier Device Package | PowerSSO-12™ |
| Fault Protection | Current Limiting (Fixed), Open Load Detect, Over Temperature, Over Voltage |
