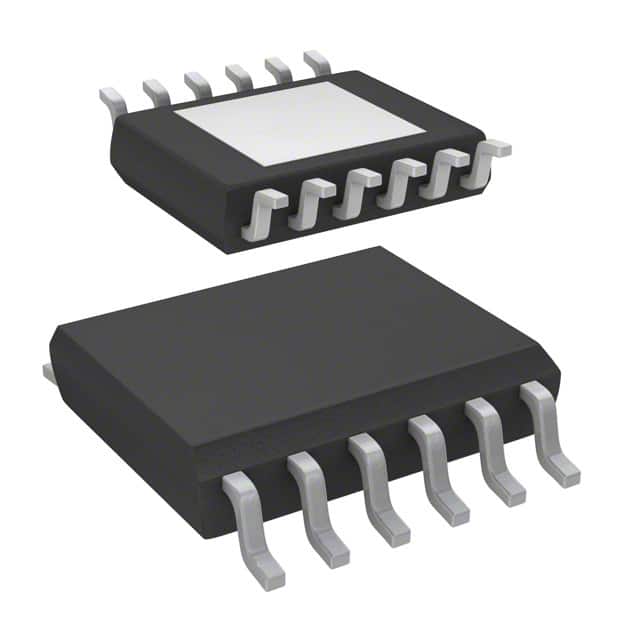

VND5050AJ-E
IC PWR DRVR N-CHAN 1:1 PWRSSO12Manufacturer: STMicroelectronics
Categories: Power Distribution Switches, Load Drivers
Quality Control: Learn More
STMicroelectronics VIPower™ VND5050AJ-E is a dual-channel high-side driver designed for robust power management applications. This N-channel power switch utilizes the PowerSSO-12™ package to deliver a compact solution for demanding automotive and industrial control systems. With a maximum output current of 12A per channel and a low on-resistance of 50mOhm (typ), the VND5050AJ-E efficiently drives various loads. Integrated fault protection includes fixed current limiting, over-temperature shutdown, and over-voltage protection, all managed through a simple ON/OFF interface. The device also features auto-restart functionality for enhanced system resilience. Its 1:1 input-to-output ratio and high-side output configuration make it suitable for direct load control in applications requiring precise power delivery and comprehensive protection.
Additional Information
Series: VIPower™RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TubeDatasheet:Download Free CAD Model:
Technical Details:
| Features | Auto Restart |
| Packaging | Tube |
| Package / Case | PowerSSO-12 |
| Output Type | N-Channel |
| Mounting Type | Surface Mount |
| Number of Outputs | 2 |
| Interface | ON/OFF |
| Switch Type | General Purpose |
| Operating Temperature | -40°C ~ 150°C (TJ) |
| Output Configuration | High Side |
| Rds On (Typ) | 50mOhm (Max) |
| Input Type | Non-Inverting |
| Voltage - Load | 4.5V ~ 36V |
| Voltage - Supply (Vcc/Vdd) | Not Required |
| Current - Output (Max) | 12A |
| Ratio - Input:Output | 1:1 |
| Supplier Device Package | PowerSSO-12™ |
| Fault Protection | Current Limiting (Fixed), Over Temperature, Over Voltage |
