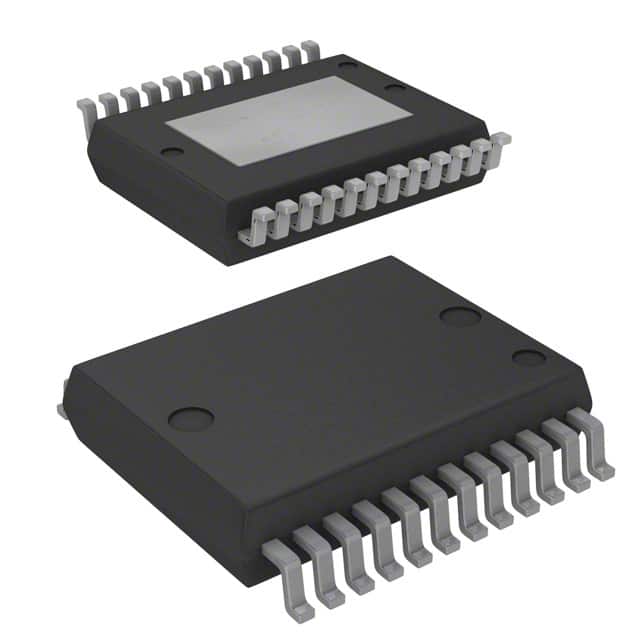

VND5012AK-E
IC PWR DRVR N-CHAN 1:1 PWRSSO24Manufacturer: STMicroelectronics
Categories: Power Distribution Switches, Load Drivers
Quality Control: Learn More
STMicroelectronics VIPower™ VND5012AK-E is a dual-channel 42A high-side power driver with N-channel MOSFET outputs in a PowerSSO-24 package. This component offers robust fault protection including fixed current limiting, over-temperature, and over-voltage protection, coupled with an auto-restart feature. The device operates within a load voltage range of 4.5V to 36V, providing a low on-resistance of 12mOhm typical. Designed for general-purpose switching applications, it features a straightforward ON/OFF interface and is suitable for surface mounting. The VND5012AK-E is utilized in automotive applications, industrial automation, and power management systems demanding high-current switching capabilities.
Additional Information
Series: VIPower™RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TrayDatasheet:Download Free CAD Model:
Technical Details:
| Features | Auto Restart |
| Packaging | Tray |
| Package / Case | 24-PowerBSOP (0.295"", 7.50mm Width) |
| Output Type | N-Channel |
| Mounting Type | Surface Mount |
| Number of Outputs | 2 |
| Interface | ON/OFF |
| Switch Type | General Purpose |
| Operating Temperature | -40°C ~ 150°C (TJ) |
| Output Configuration | High Side |
| Rds On (Typ) | 12mOhm (Max) |
| Input Type | Non-Inverting |
| Voltage - Load | 4.5V ~ 36V |
| Voltage - Supply (Vcc/Vdd) | Not Required |
| Current - Output (Max) | 42A |
| Ratio - Input:Output | 1:1 |
| Supplier Device Package | PowerSSO-24 |
| Fault Protection | Current Limiting (Fixed), Over Temperature, Over Voltage |
Request a Quote
