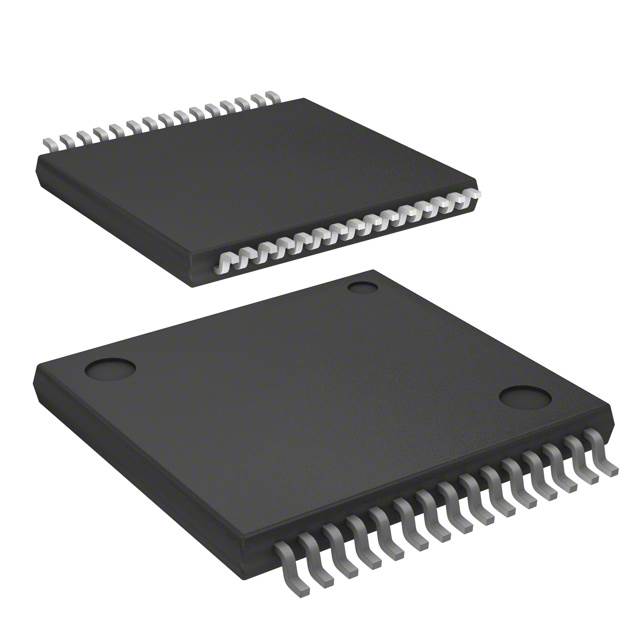

VND5004BSP30-E
IC PWR SWITCH N-CH MULTIPWRSO-30Manufacturer: STMicroelectronics
Categories: Power Distribution Switches, Load Drivers
Quality Control: Learn More
The STMicroelectronics VIPower™ VND5004BSP30-E is a dual-channel, high-side power switch designed for demanding applications. This N-channel MOSFET driver, housed in a 30-PowerSOP package, offers a robust solution for load control. Featuring fixed current limiting, over-temperature, and over-voltage fault protection, coupled with auto-restart functionality, it ensures reliable operation in automotive and industrial power systems. The device supports a load voltage range of 4.5V to 28V, with a maximum output current of 70A per channel. Its low Rds(on) of 4mOhm (typ) minimizes power dissipation. The VND5004BSP30-E utilizes a simple ON/OFF interface and is suitable for surface-mount configurations. This component is commonly found in automotive body control modules and industrial motor drivers.
Additional Information
Series: VIPower™RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: DiscontinuedPackaging: TubeDatasheet:Download Free CAD Model:
Technical Details:
| Features | Auto Restart |
| Packaging | Tube |
| Package / Case | 30-PowerSOP (0.630"", 16.00mm Width) |
| Output Type | N-Channel |
| Mounting Type | Surface Mount |
| Number of Outputs | 2 |
| Interface | ON/OFF |
| Switch Type | General Purpose |
| Operating Temperature | -40°C ~ 150°C (TJ) |
| Output Configuration | High Side |
| Rds On (Typ) | 4mOhm (Max) |
| Input Type | Non-Inverting |
| Voltage - Load | 4.5V ~ 28V |
| Voltage - Supply (Vcc/Vdd) | Not Required |
| Current - Output (Max) | 70A |
| Ratio - Input:Output | 1:1 |
| Supplier Device Package | MultiPowerSO-30 |
| Fault Protection | Current Limiting (Fixed), Over Temperature, Over Voltage |
