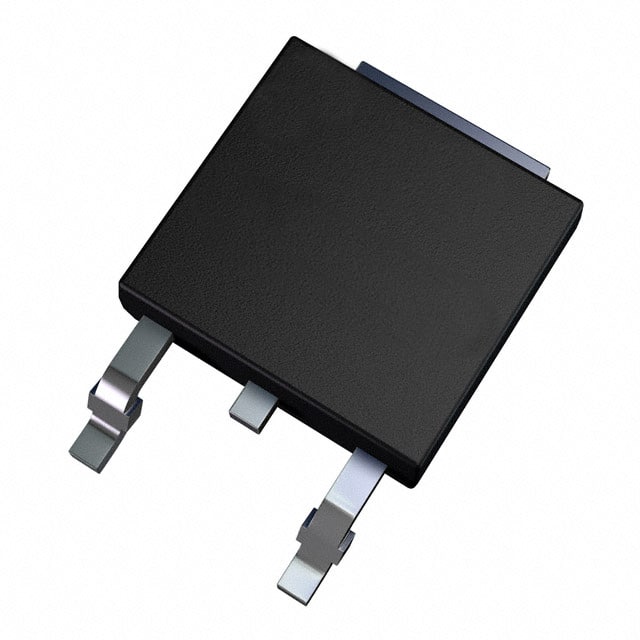

VND14NV04-E
IC PWR DRIVER N-CHANNEL 1:1 DPAKManufacturer: STMicroelectronics
Categories: Power Distribution Switches, Load Drivers
Quality Control: Learn More
STMicroelectronics OMNIFET II™, VIPower™ VND14NV04-E is a single-channel, N-channel power MOSFET driver designed for robust power management applications. This general-purpose switch, housed in a TO-252-3, DPAK (2 Leads + Tab), SC-63 package, offers a maximum continuous output current of 12A. Key features include integrated fault protection mechanisms such as fixed current limiting, over-temperature protection, and over-voltage protection, enhancing system reliability. The device operates with a non-inverting input and a simple ON/OFF interface. Its low-side output configuration is ideal for driving various loads. The typical ON resistance is 35mOhm (Max). This component is suitable for use in automotive and industrial control systems, delivering efficient power switching and protection.
Additional Information
Series: OMNIFET II™, VIPower™RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TubeDatasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Tube |
| Package / Case | TO-252-3, DPAK (2 Leads + Tab), SC-63 |
| Output Type | N-Channel |
| Mounting Type | Surface Mount |
| Number of Outputs | 1 |
| Interface | ON/OFF |
| Switch Type | General Purpose |
| Operating Temperature | -40°C ~ 150°C (TJ) |
| Output Configuration | Low Side |
| Rds On (Typ) | 35mOhm (Max) |
| Input Type | Non-Inverting |
| Voltage - Load | 36V (Max) |
| Voltage - Supply (Vcc/Vdd) | Not Required |
| Current - Output (Max) | 12A |
| Ratio - Input:Output | 1:1 |
| Supplier Device Package | DPAK |
| Fault Protection | Current Limiting (Fixed), Over Temperature, Over Voltage |
