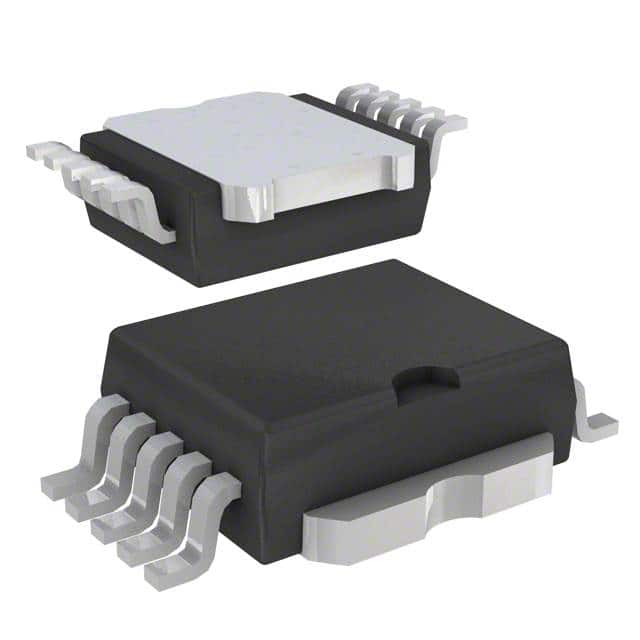

VND05BSP-E
IC PWR DRIVER N-CHAN 1:1 PWRSO10Manufacturer: STMicroelectronics
Categories: Power Distribution Switches, Load Drivers
Quality Control: Learn More
STMicroelectronics VND05BSP-E is a high-side power switch and driver designed for demanding applications. This N-channel device features two outputs, each capable of handling up to 1.6A, with a typical Rds On of 200mOhm. The VND05BSP-E offers integrated fault protection, including open-load detection and over-temperature shutdown, alongside a status flag for monitoring. Its ON/OFF interface and non-inverting input simplify integration into power distribution systems. Suitable for automotive, industrial automation, and general power management applications, this component is supplied in a 10-PowerSO package with an exposed bottom pad for enhanced thermal performance. The operating temperature range is -40°C to 150°C (TJ).
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TubeDownload Free CAD Model:
Technical Details:
| Features | Status Flag |
| Packaging | Tube |
| Package / Case | PowerSO-10 Exposed Bottom Pad |
| Output Type | N-Channel |
| Mounting Type | Surface Mount |
| Number of Outputs | 2 |
| Interface | ON/OFF |
| Switch Type | General Purpose |
| Operating Temperature | -40°C ~ 150°C (TJ) |
| Output Configuration | High Side |
| Rds On (Typ) | 200mOhm (Max) |
| Input Type | Non-Inverting |
| Voltage - Load | 6V ~ 26V |
| Voltage - Supply (Vcc/Vdd) | Not Required |
| Current - Output (Max) | 1.6A |
| Ratio - Input:Output | 1:1 |
| Supplier Device Package | 10-PowerSO |
| Fault Protection | Open Load Detect, Over Temperature |
