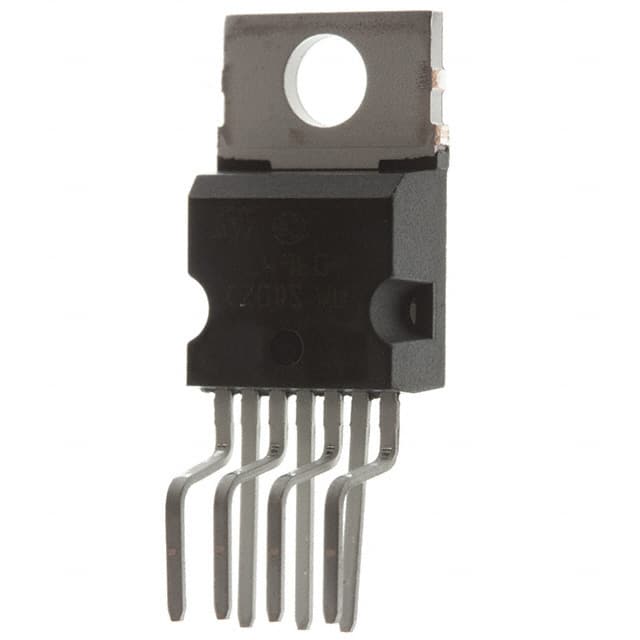

VND05B
IC PWR DRVR N-CH 1:1 HEPTAWATT-7Manufacturer: STMicroelectronics
Categories: Power Distribution Switches, Load Drivers
Quality Control: Learn More
STMicroelectronics VND05B is a single-channel, N-channel power switch/driver designed for general-purpose applications. This device features a 1:1 input-to-output ratio and a maximum output current of 1.6A. It provides robust fault protection, including open load detection and over-temperature protection, along with a status flag for monitoring. The VND05B operates with a load voltage range of 6V to 26V and has a typical ON-resistance of 200mOhm. Its output configuration is high-side, and it utilizes an ON/OFF interface. Packaged in a 7-HEPTAWATT vertical configuration, this component is suitable for through-hole mounting. Industries benefiting from this device include automotive and industrial automation.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TubeDownload Free CAD Model:
Technical Details:
| Features | Status Flag |
| Packaging | Tube |
| Package / Case | Heptawatt-7 (Vertical, Bent and Staggered Leads) |
| Output Type | N-Channel |
| Mounting Type | Through Hole |
| Number of Outputs | 2 |
| Interface | ON/OFF |
| Switch Type | General Purpose |
| Operating Temperature | -40°C ~ 150°C (TJ) |
| Output Configuration | High Side |
| Rds On (Typ) | 200mOhm (Max) |
| Input Type | Non-Inverting |
| Voltage - Load | 6V ~ 26V |
| Voltage - Supply (Vcc/Vdd) | Not Required |
| Current - Output (Max) | 1.6A |
| Ratio - Input:Output | 1:1 |
| Supplier Device Package | 7-HEPTAWATT |
| Fault Protection | Open Load Detect, Over Temperature |
