VNB49N04
IC PWR DRIVER N-CHAN 1:1 D2PAKManufacturer: STMicroelectronics
Categories: Power Distribution Switches, Load Drivers
Quality Control: Learn More

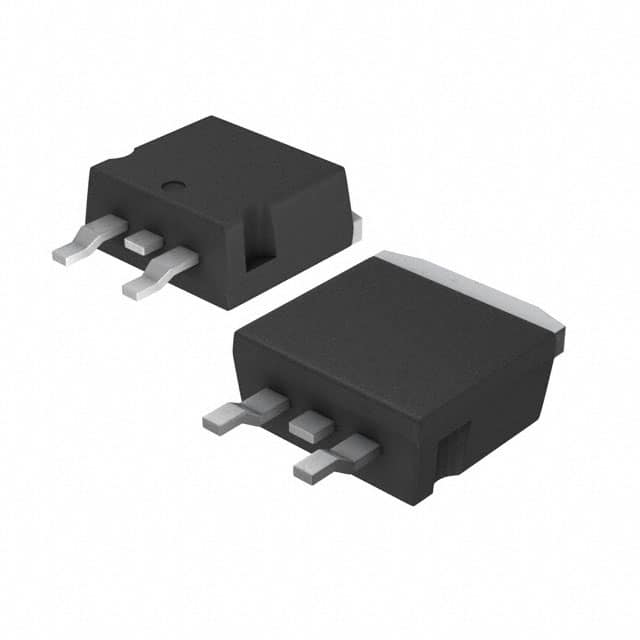

STMicroelectronics VNB49N04, an OMNIFET™, VIPower™ series device, is a single-channel N-channel power MOSFET designed for general-purpose switching applications. This surface-mount component, packaged in a D2PAK (TO-263-3), offers a robust 28A maximum output current and a low Rds On of typically 40mOhm. Integrated fault protection includes fixed current limiting, over-temperature, and over-voltage safeguards, complemented by a status flag feature for monitoring. The device operates with an ON/OFF interface and is suitable for load voltages up to 33V. Its low-side output configuration and robust design make it valuable in automotive and industrial control systems.
Additional Information
Series: OMNIFET™, VIPower™RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TubeDownload Free CAD Model:
Technical Details:
| Features | Status Flag |
| Packaging | Tube |
| Package / Case | TO-263-3, D2PAK (2 Leads + Tab), TO-263AB |
| Output Type | N-Channel |
| Mounting Type | Surface Mount |
| Number of Outputs | 1 |
| Interface | ON/OFF |
| Switch Type | General Purpose |
| Operating Temperature | -40°C ~ 125°C (TJ) |
| Output Configuration | Low Side |
| Rds On (Typ) | 40mOhm (Max) |
| Input Type | Non-Inverting |
| Voltage - Load | 33V (Max) |
| Voltage - Supply (Vcc/Vdd) | Not Required |
| Current - Output (Max) | 28A |
| Ratio - Input:Output | 1:1 |
| Supplier Device Package | D2PAK |
| Fault Protection | Current Limiting (Fixed), Over Temperature, Over Voltage |
