VNB35NV04
IC PWR DRIVER N-CHAN 1:1 D2PAKManufacturer: STMicroelectronics
Categories: Power Distribution Switches, Load Drivers
Quality Control: Learn More

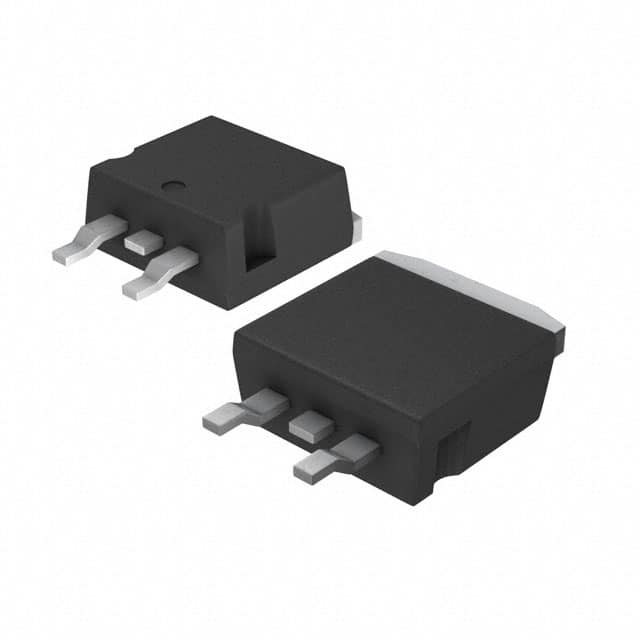

STMicroelectronics VNB35NV04, an OMNIFET II™, VIPower™ series N-Channel Power MOSFET, is engineered for high-side load driving applications. This device offers a 1:1 input-to-output ratio and a maximum continuous output current of 30A. Key fault protection features include fixed current limiting, over-temperature shutdown, and over-voltage protection, ensuring robust operation. The VNB35NV04 is housed in a TO-263-3, D2PAK package suitable for surface mounting. Its low on-resistance, typically 13mOhm, minimizes power dissipation. This component is commonly utilized in automotive applications and industrial motor control systems.
Additional Information
Series: OMNIFET II™, VIPower™RoHS Status: RoHS non-compliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TubeDownload Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Tube |
| Package / Case | TO-263-3, D2PAK (2 Leads + Tab), TO-263AB |
| Output Type | N-Channel |
| Mounting Type | Surface Mount |
| Number of Outputs | 1 |
| Interface | ON/OFF |
| Switch Type | General Purpose |
| Operating Temperature | -40°C ~ 150°C (TJ) |
| Output Configuration | Low Side |
| Rds On (Typ) | 13mOhm (Max) |
| Input Type | Non-Inverting |
| Voltage - Load | 36V (Max) |
| Voltage - Supply (Vcc/Vdd) | Not Required |
| Current - Output (Max) | 30A |
| Ratio - Input:Output | 1:1 |
| Supplier Device Package | D2PAK |
| Fault Protection | Current Limiting (Fixed), Over Temperature, Over Voltage |
