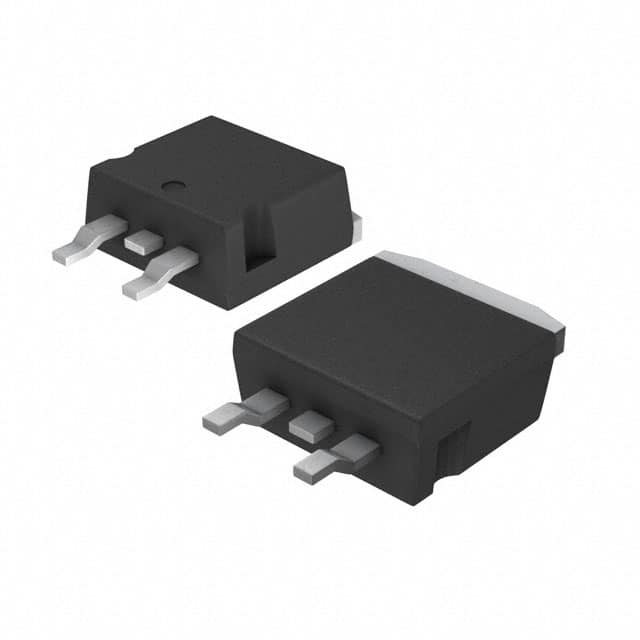

VNB20N07
IC PWR DRIVER N-CHAN 1:1 D2PAKManufacturer: STMicroelectronics
Categories: Power Distribution Switches, Load Drivers
Quality Control: Learn More
STMicroelectronics VNB20N07 is an OMNIFET™, VIPower™ series N-channel power MOSFET with a 1:1 input-to-output ratio. This device functions as a low-side power switch/driver, capable of handling a maximum output current of 14A. It offers robust fault protection including fixed current limiting, over-temperature protection, and over-voltage protection, along with a status flag feature. The device utilizes an ON/OFF interface for control and has a typical Rds On of 50mOhm. Designed for surface mount applications, it is housed in a TO-263-3, D2PAK package. The VNB20N07 is suitable for automotive and industrial applications requiring reliable power distribution and load driving.
Additional Information
Series: OMNIFET™, VIPower™RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TubeDatasheet:Download Free CAD Model:
Technical Details:
| Features | Status Flag |
| Packaging | Tube |
| Package / Case | TO-263-3, D2PAK (2 Leads + Tab), TO-263AB |
| Output Type | N-Channel |
| Mounting Type | Surface Mount |
| Number of Outputs | 1 |
| Interface | ON/OFF |
| Switch Type | General Purpose |
| Operating Temperature | - |
| Output Configuration | Low Side |
| Rds On (Typ) | 50mOhm (Max) |
| Input Type | Non-Inverting |
| Voltage - Load | 55V (Max) |
| Voltage - Supply (Vcc/Vdd) | Not Required |
| Current - Output (Max) | 14A |
| Ratio - Input:Output | 1:1 |
| Supplier Device Package | D2PAK |
| Fault Protection | Current Limiting (Fixed), Over Temperature, Over Voltage |
