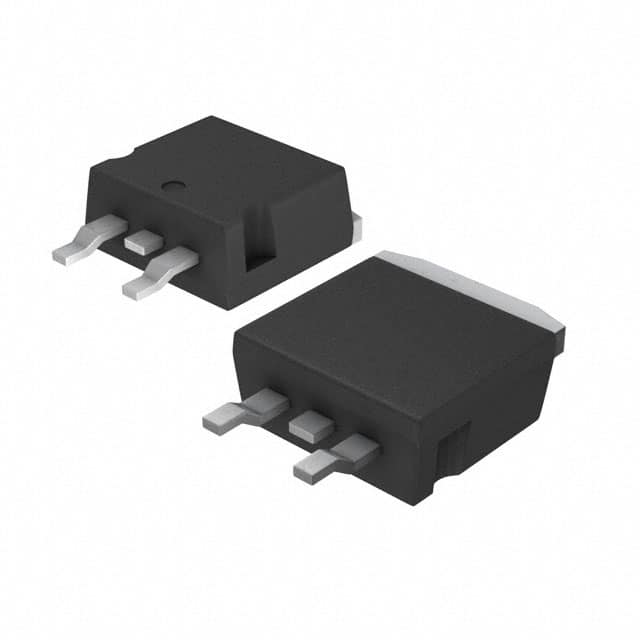

VNB10N07-E
IC PWR DRIVER N-CHAN 1:1 D2PAKManufacturer: STMicroelectronics
Categories: Power Distribution Switches, Load Drivers
Quality Control: Learn More
STMicroelectronics VNB10N07-E, an OMNIFET™, VIPower™ series N-channel power MOSFET, functions as a high-side driver. This device offers a 1:1 input-to-output ratio and supports a maximum load current of 14A with a typical Rds On of 100mOhm. Integrated fault protection includes fixed current limiting, over-temperature shutdown, and over-voltage clamping. The VNB10N07-E is designed for general-purpose switching applications, featuring an ON/OFF interface and a non-inverting input. It is housed in a TO-263-3, D2PAK package suitable for surface mounting. This power driver is commonly utilized in automotive applications, industrial automation, and power management systems.
Additional Information
Series: OMNIFET™, VIPower™RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TubeDatasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Tube |
| Package / Case | TO-263-3, D2PAK (2 Leads + Tab), TO-263AB |
| Output Type | N-Channel |
| Mounting Type | Surface Mount |
| Number of Outputs | 1 |
| Interface | ON/OFF |
| Switch Type | General Purpose |
| Operating Temperature | - |
| Output Configuration | Low Side |
| Rds On (Typ) | 100mOhm (Max) |
| Input Type | Non-Inverting |
| Voltage - Load | 55V (Max) |
| Voltage - Supply (Vcc/Vdd) | Not Required |
| Current - Output (Max) | 14A |
| Ratio - Input:Output | 1:1 |
| Supplier Device Package | D2PAK |
| Fault Protection | Current Limiting (Fixed), Over Temperature, Over Voltage |
