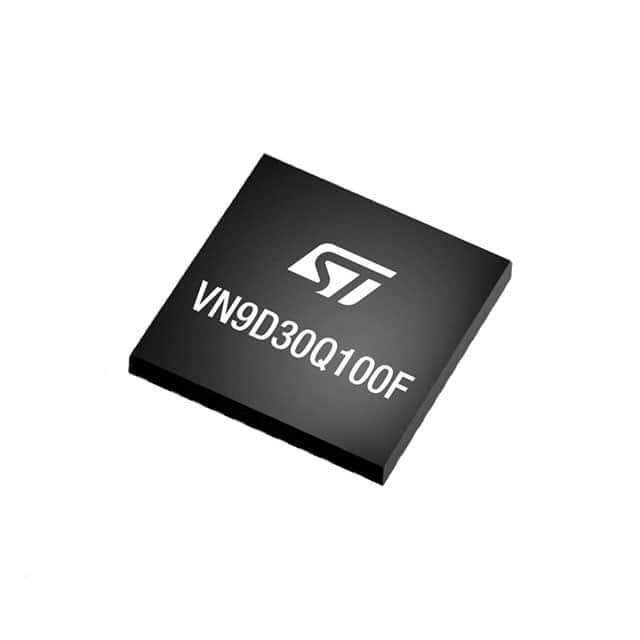

VN9D30Q100FTR
6-CHANNEL HIGH-SIDE DRIVER WITHManufacturer: STMicroelectronics
Categories: Power Distribution Switches, Load Drivers
Quality Control: Learn More
The STMicroelectronics VN9D30Q100FTR is a 6-channel high-side driver designed for power distribution applications. This electronic component features N-Channel MOSFET outputs and is packaged in a 32-QFN (6x6) form factor, supplied on tape and reel. With a maximum continuous output current of 6.6A per channel, it offers a 1:6 input-to-output ratio. The device incorporates robust fault protection mechanisms, including fixed current limiting, over-temperature protection, and over-voltage protection. A status flag feature provides output monitoring capabilities. The VN9D30Q100FTR operates with a supply voltage range of 2.7V to 5.5V and a load voltage range of 4V to 29V. Its typical on-resistance is 90mOhm. This component is suitable for general-purpose switching and is commonly utilized in automotive and industrial automation sectors. The operating temperature range is -40°C to 150°C (TJ).
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 26 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Features | Status Flag |
| Packaging | Tape & Reel (TR) |
| Package / Case | 32-PowerVFQFN |
| Output Type | N-Channel |
| Mounting Type | Surface Mount, Wettable Flank |
| Number of Outputs | 6 |
| Interface | SPI |
| Switch Type | General Purpose |
| Operating Temperature | -40°C ~ 150°C (TJ) |
| Output Configuration | High Side |
| Rds On (Typ) | 90mOhm |
| Input Type | Non-Inverting |
| Voltage - Load | 4V ~ 29V |
| Voltage - Supply (Vcc/Vdd) | 2.7V ~ 5.5V |
| Current - Output (Max) | 6.6A |
| Ratio - Input:Output | 1:6 |
| Supplier Device Package | 32-QFN (6x6) |
| Fault Protection | Current Limiting (Fixed), Over Temperature, Over Voltage |
