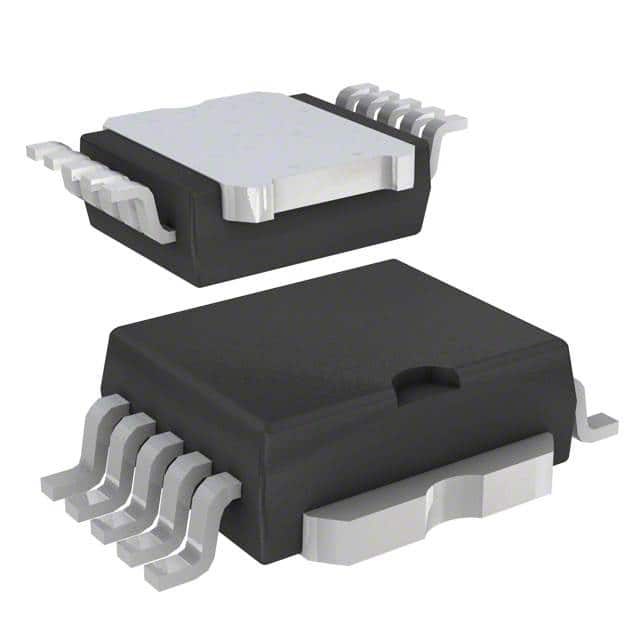

VN920SPTR-E
IC PWR DRIVER N-CHAN 1:1 PWRSO10Manufacturer: STMicroelectronics
Categories: Power Distribution Switches, Load Drivers
Quality Control: Learn More
The STMicroelectronics VN920SPTR-E is an N-channel Power MOSFET driver from the VIPower™ series, designed for high-side switching applications. This component offers a robust solution with a maximum output current of 30A and a low on-resistance of 15mOhm (typ). Integrated fault protection includes fixed current limiting, over-temperature, and over-voltage protection, complemented by an auto-restart feature. The device operates across a load voltage range of 5.5V to 36V and is suitable for surface mounting within a 10-PowerSO package. Its ON/OFF interface and non-inverting input configuration simplify integration into power distribution systems. This versatile component finds application in automotive, industrial automation, and power management systems.
Additional Information
Series: VIPower™RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Features | Auto Restart |
| Packaging | Tape & Reel (TR) |
| Package / Case | PowerSO-10 Exposed Bottom Pad |
| Output Type | N-Channel |
| Mounting Type | Surface Mount |
| Number of Outputs | 1 |
| Interface | ON/OFF |
| Switch Type | General Purpose |
| Operating Temperature | -40°C ~ 150°C (TJ) |
| Output Configuration | High Side |
| Rds On (Typ) | 15mOhm (Max) |
| Input Type | Non-Inverting |
| Voltage - Load | 5.5V ~ 36V |
| Voltage - Supply (Vcc/Vdd) | Not Required |
| Current - Output (Max) | 30A |
| Ratio - Input:Output | 1:1 |
| Supplier Device Package | 10-PowerSO |
| Fault Protection | Current Limiting (Fixed), Over Temperature, Over Voltage |
