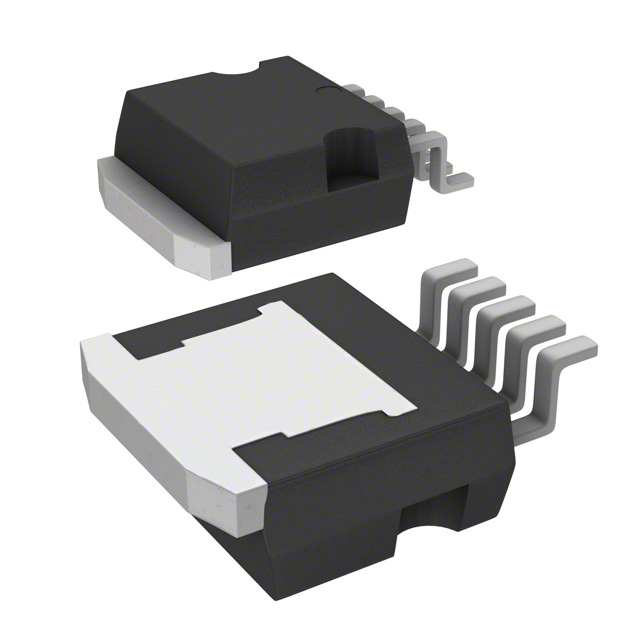

VN920B5HTR-E
IC PWR DRIVER N-CHAN 1:1 P2PAKManufacturer: STMicroelectronics
Categories: Power Distribution Switches, Load Drivers
Quality Control: Learn More
The STMicroelectronics VN920B5HTR-E is a VIPower™ series N-channel power switch designed for high-side load driving. This device offers a 1:1 input-to-output ratio and a high current capability of up to 30A. Key features include integrated current limiting (fixed), over-temperature, and over-voltage fault protection, along with auto-restart functionality. The non-inverting input interface operates via an ON/OFF signal. With a low on-resistance of typically 18mOhm maximum, the VN920B5HTR-E is suitable for applications requiring robust power management. It is housed in a P2PAK (4 leads + tab) surface-mount package and operates across an industrial temperature range of -40°C to 150°C (TJ). This component finds application in automotive and industrial automation systems.
Additional Information
Series: VIPower™RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Features | Auto Restart |
| Packaging | Tape & Reel (TR) |
| Package / Case | P2PAK (4 Leads + Tab) |
| Output Type | N-Channel |
| Mounting Type | Surface Mount |
| Number of Outputs | 1 |
| Interface | ON/OFF |
| Switch Type | General Purpose |
| Operating Temperature | -40°C ~ 150°C (TJ) |
| Output Configuration | High Side |
| Rds On (Typ) | 18mOhm (Max) |
| Input Type | Non-Inverting |
| Voltage - Load | 5.5V ~ 36V |
| Voltage - Supply (Vcc/Vdd) | Not Required |
| Current - Output (Max) | 30A |
| Ratio - Input:Output | 1:1 |
| Supplier Device Package | P2PAK |
| Fault Protection | Current Limiting (Fixed), Over Temperature, Over Voltage |
