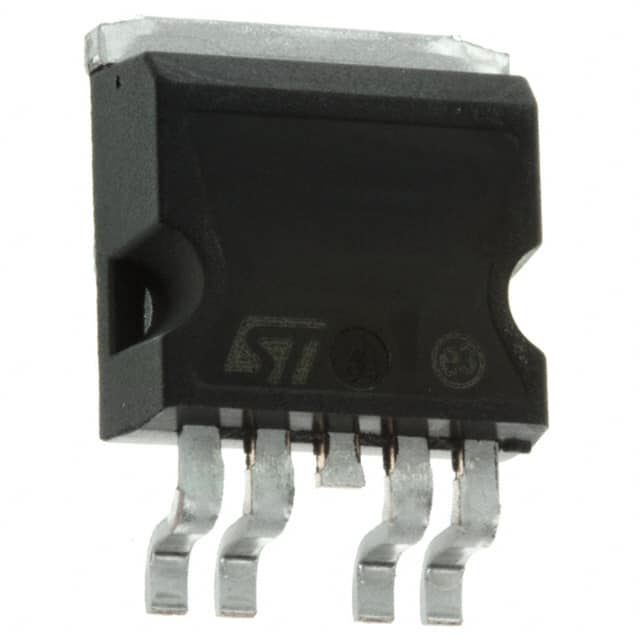

VN920B5-E
IC PWR DRIVER N-CHAN 1:1 P2PAKManufacturer: STMicroelectronics
Categories: Power Distribution Switches, Load Drivers
Quality Control: Learn More
The STMicroelectronics VIPower™ VN920B5-E is a high-side N-channel power switch with a 1:1 input-to-output ratio. This device offers robust performance with a maximum output current of 30A and low on-resistance (Rds On) typically at 16mOhm. Designed for demanding applications, it integrates comprehensive fault protection including fixed current limiting, over-temperature shutdown, and over-voltage protection with auto-restart functionality. The interface is a simple ON/OFF control, accepting non-inverting input. Operating across a wide temperature range of -40°C to 150°C (TJ), the VN920B5-E is suitable for load voltages from 5.5V up to 36V. Its output configuration is high-side and the N-channel output type is delivered in a P2PAK package. This component finds application in automotive and industrial automation sectors.
Additional Information
Series: VIPower™RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TubeDatasheet:Download Free CAD Model:
Technical Details:
| Features | Auto Restart |
| Packaging | Tube |
| Package / Case | P2PAK (4 Leads + Tab) |
| Output Type | N-Channel |
| Mounting Type | Surface Mount |
| Number of Outputs | 1 |
| Interface | ON/OFF |
| Switch Type | General Purpose |
| Operating Temperature | -40°C ~ 150°C (TJ) |
| Output Configuration | High Side |
| Rds On (Typ) | 16mOhm (Max) |
| Input Type | Non-Inverting |
| Voltage - Load | 5.5V ~ 36V |
| Voltage - Supply (Vcc/Vdd) | Not Required |
| Current - Output (Max) | 30A |
| Ratio - Input:Output | 1:1 |
| Supplier Device Package | P2PAK |
| Fault Protection | Current Limiting (Fixed), Over Temperature, Over Voltage |
Request a Quote
