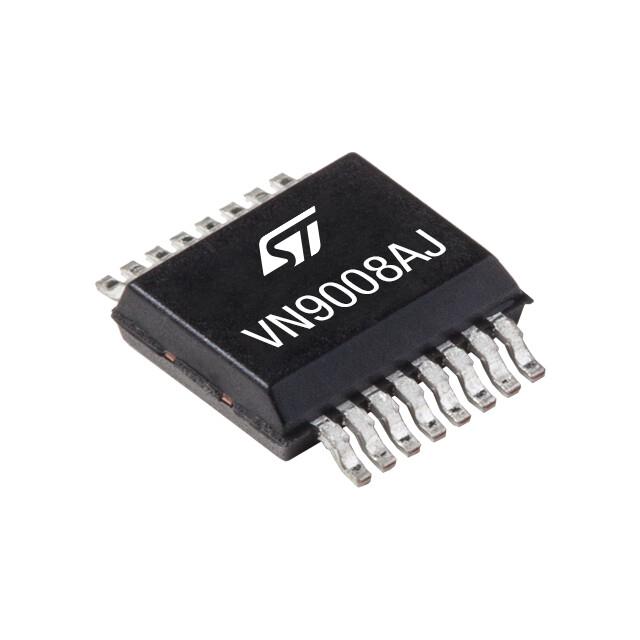

VN9008AJTR
SINGLE CHANNEL HIGH-SIDE DRIVERManufacturer: STMicroelectronics
Categories: Power Distribution Switches, Load Drivers
Quality Control: Learn More
STMicroelectronics VN9008AJTR, a single-channel high-side driver, offers robust power control for demanding applications. This N-Channel MOSFET driver, housed in a PowerSSO-16 package, delivers a maximum output current of 81.6A with a low on-resistance of 8mOhm typical. The VN9008AJTR is engineered with comprehensive fault protection mechanisms including fixed current limiting, open load detection, overload protection, over-temperature shutdown, over-voltage clamping, and reverse battery protection. Its automotive-grade qualification (AEC-Q100) and operating temperature range of -40°C to 150°C (TJ) ensure reliability in harsh environments. Key features include a latch function and a status flag for system monitoring. This component is suitable for automotive and industrial power distribution systems.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 26 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Features | Latch Function, Status Flag |
| Packaging | Tape & Reel (TR) |
| Package / Case | 16-PowerLFSOP (0.154"", 3.90mm Width) |
| Output Type | N-Channel |
| Mounting Type | Surface Mount |
| Number of Outputs | 1 |
| Interface | - |
| Switch Type | General Purpose |
| Operating Temperature | -40°C ~ 150°C (TJ) |
| Output Configuration | High Side |
| Rds On (Typ) | 8mOhm |
| Input Type | Non-Inverting |
| Voltage - Load | - |
| Voltage - Supply (Vcc/Vdd) | 4V ~ 28V |
| Current - Output (Max) | 81.6A |
| Ratio - Input:Output | 1:1 |
| Supplier Device Package | PowerSSO-16 |
| Fault Protection | Current Limiting (Fixed), Open Load Detect, Over Load, Over Temperature, Over Voltage, Reverse Batte |
| Grade | Automotive |
| Qualification | AEC-Q100 |
