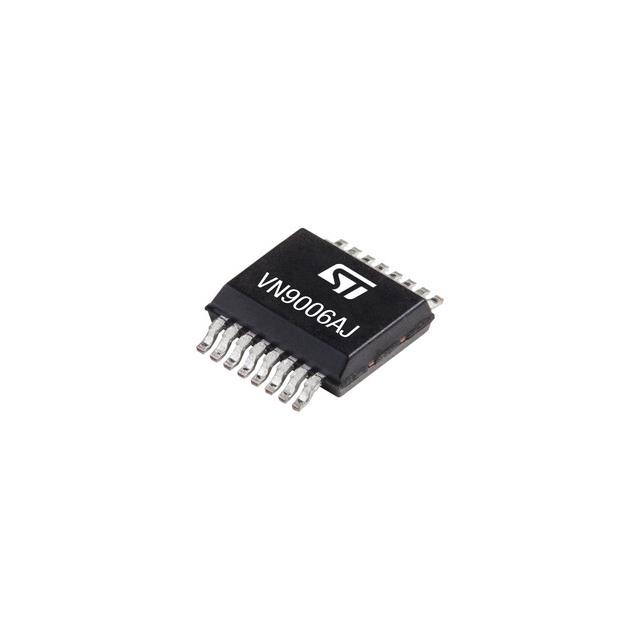

VN9006AJTR
SINGLE CHANNEL HIGH-SIDE DRIVERManufacturer: STMicroelectronics
Categories: Power Distribution Switches, Load Drivers
Quality Control: Learn More
STMicroelectronics VN9006AJTR is a single-channel high-side driver designed for robust power switching applications. This N-Channel MOSFET driver, housed in a PowerSSO-16 package, offers a continuous output current capability of up to 82A and a low on-resistance of 6mOhm (typical). It features comprehensive fault protection including adjustable current limiting, over-temperature, over-voltage, reverse battery, and open-load detection. The VN9006AJTR provides a status flag for monitoring output conditions. Its voltage rating for both supply and load is from 4V to 28V, making it suitable for automotive and industrial power distribution systems. The device is supplied in tape and reel packaging for automated assembly.
Additional Information
Series: -RoHS Status: unknownManufacturer Lead Time: 26 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Features | Status Flag |
| Packaging | Tape & Reel (TR) |
| Package / Case | 16-PowerLFSOP (0.154"", 3.90mm Width) |
| Output Type | N-Channel |
| Mounting Type | Surface Mount |
| Number of Outputs | 1 |
| Interface | Logic |
| Switch Type | General Purpose |
| Operating Temperature | -40°C ~ 150°C (TJ) |
| Output Configuration | High Side |
| Rds On (Typ) | 6mOhm |
| Input Type | Non-Inverting |
| Voltage - Load | 4V ~ 28V |
| Voltage - Supply (Vcc/Vdd) | 4V ~ 28V |
| Current - Output (Max) | 82A |
| Ratio - Input:Output | 1:1 |
| Supplier Device Package | PowerSSO-16 |
| Fault Protection | Current Limiting (Adjustable), Open Load Detect, Over Temperature, Over Voltage, Reverse Battery, Sh |
