VN820SP-E

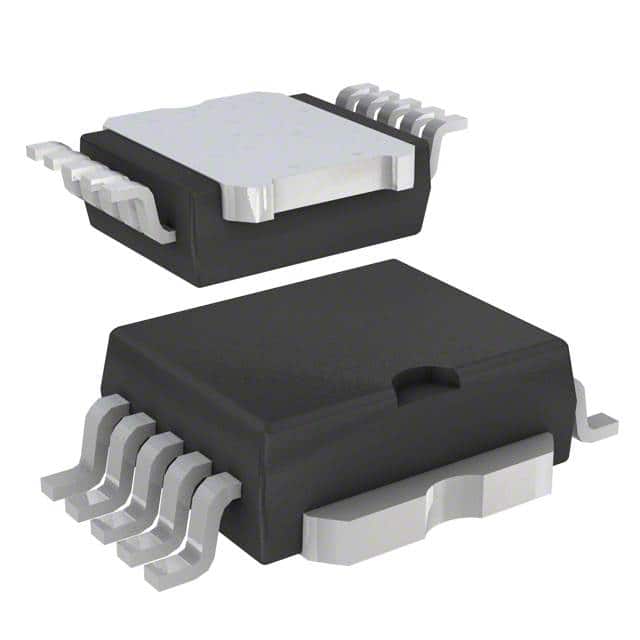

IC PWR DRIVER N-CHAN 1:1 PWRSO10Manufacturer: STMicroelectronics
Categories: Power Distribution Switches, Load Drivers
Quality Control: Learn More
STMicroelectronics VN820SP-E is a high-side power switch and driver featuring a 1:1 N-channel configuration. This component is designed for general-purpose applications, offering a robust solution for load driving with a maximum output current of 9A. Key fault protection mechanisms include fixed current limiting, open load detection, over-temperature protection, and over-voltage protection. Operational features such as auto-restart and a status flag enhance system reliability. The device operates within a load voltage range of 5.5V to 36V and has a typical Rds On of 40mOhm. Its input is non-inverting, and the interface is controlled via an ON/OFF signal. The VN820SP-E is housed in a 10-PowerSO package with an exposed bottom pad, designed for surface mounting. This device is suitable for use in automotive and industrial automation sectors.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TubeDatasheet:Download Free CAD Model:
Technical Details:
| Features | Auto Restart, Status Flag |
| Packaging | Tube |
| Package / Case | PowerSO-10 Exposed Bottom Pad |
| Output Type | N-Channel |
| Mounting Type | Surface Mount |
| Number of Outputs | 1 |
| Interface | ON/OFF |
| Switch Type | General Purpose |
| Operating Temperature | -40°C ~ 150°C (TJ) |
| Output Configuration | High Side |
| Rds On (Typ) | 40mOhm (Max) |
| Input Type | Non-Inverting |
| Voltage - Load | 5.5V ~ 36V |
| Voltage - Supply (Vcc/Vdd) | Not Required |
| Current - Output (Max) | 9A |
| Ratio - Input:Output | 1:1 |
| Supplier Device Package | 10-PowerSO |
| Fault Protection | Current Limiting (Fixed), Open Load Detect, Over Temperature, Over Voltage |
