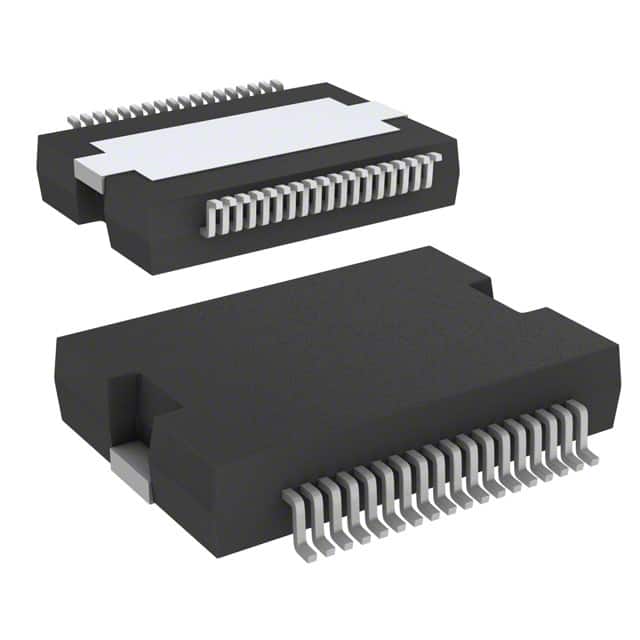

VN808CM-32-E
IC PWR DRIVER N-CHAN 1:1 PWRSO36Manufacturer: STMicroelectronics
Categories: Power Distribution Switches, Load Drivers
Quality Control: Learn More
Power Switch/Driver 1:1 N-Channel 1A PowerSO-36, Bottom Pad
Additional Information
Series: VIPower™RoHS Status: ROHS3 CompliantManufacturer Lead Time: 16 week(s)Product Status: ActivePackaging: TubeDatasheet:Download Free CAD Model:
Technical Details:
| Features | Auto Restart, Status Flag |
| Packaging | Tube |
| Package / Case | 36-PowerBSSOP (0.433"", 11.00mm Width) |
| Output Type | N-Channel |
| Mounting Type | Surface Mount |
| Number of Outputs | 8 |
| Interface | ON/OFF |
| Switch Type | General Purpose |
| Operating Temperature | -40°C ~ 125°C (TJ) |
| Output Configuration | High Side |
| Rds On (Typ) | 160mOhm (Max) |
| Input Type | Non-Inverting |
| Voltage - Load | 10.5V ~ 45V |
| Voltage - Supply (Vcc/Vdd) | Not Required |
| Current - Output (Max) | 1A |
| Ratio - Input:Output | 1:1 |
| Supplier Device Package | PowerSO-36, Bottom Pad |
| Fault Protection | Current Limiting (Fixed), Over Temperature |
