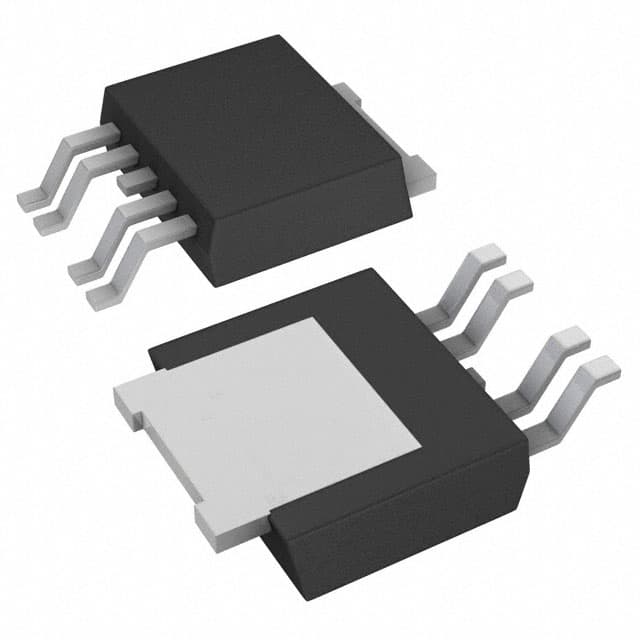

VN750PT-E
IC PWR DRIVER N-CHANNEL 1:1 PPAKManufacturer: STMicroelectronics
Categories: Power Distribution Switches, Load Drivers
Quality Control: Learn More
STMicroelectronics VN750PT-E, a VIPower™ series N-channel power switch/driver, offers robust load management capabilities. This device features a 1:1 input-to-output ratio and a maximum output current of 6A, suitable for high-side switching applications. Integrated fault protection includes fixed current limiting, open load detection, over-temperature protection, and over-voltage protection, enhancing system reliability. Key operational features include auto-restart functionality and a status flag for monitoring. The VN750PT-E is designed for surface mount installation in a PPAK (TO-252-5, DPAK) package, operating across a temperature range of -40°C to 150°C. Its low ON-resistance of 60mOhm (typ) minimizes power dissipation. This component is commonly utilized in automotive and industrial automation applications requiring efficient power distribution and protection.
Additional Information
Series: VIPower™RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: DiscontinuedPackaging: TubeDatasheet:Download Free CAD Model:
Technical Details:
| Features | Auto Restart, Status Flag |
| Packaging | Tube |
| Package / Case | TO-252-5, DPAK (4 Leads + Tab), TO-252AD |
| Output Type | N-Channel |
| Mounting Type | Surface Mount |
| Number of Outputs | 1 |
| Interface | ON/OFF |
| Switch Type | General Purpose |
| Operating Temperature | -40°C ~ 150°C (TJ) |
| Output Configuration | High Side |
| Rds On (Typ) | 60mOhm (Max) |
| Input Type | Non-Inverting |
| Voltage - Load | 5.5V ~ 36V |
| Voltage - Supply (Vcc/Vdd) | Not Required |
| Current - Output (Max) | 6A |
| Ratio - Input:Output | 1:1 |
| Supplier Device Package | PPAK |
| Fault Protection | Current Limiting (Fixed), Open Load Detect, Over Temperature, Over Voltage |
