VN5R003H-E
IC PWR SWITCH N-CHANNEL 1:1 HPAKManufacturer: STMicroelectronics
Categories: Power Distribution Switches, Load Drivers
Quality Control: Learn More

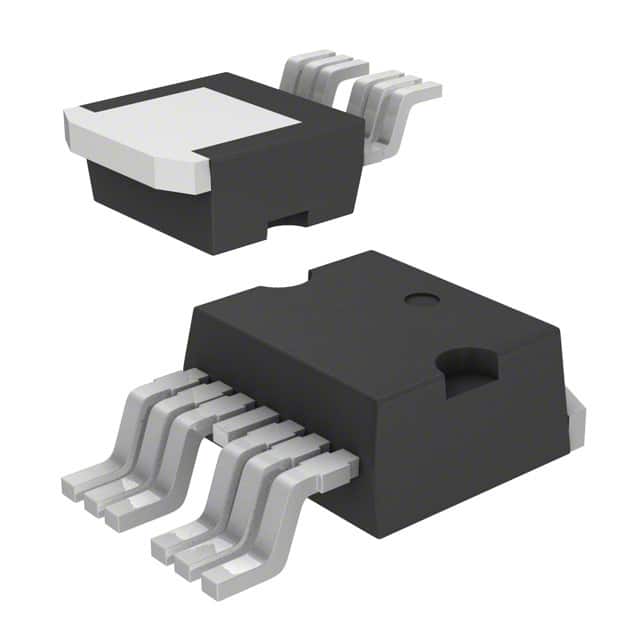

STMicroelectronics VN5R003H-E is a VIPower™ Series N-Channel power switch designed for high-side load driving. Featuring a low Rds(on) of 3mOhm (typical), this component offers efficient power management. The device is packaged in a TO-252-7, DPAK (6 Leads + Tab) format for surface mounting. The VN5R003H-E operates within a junction temperature range of -40°C to 150°C and supports load voltages from -16V to 28V. Its interface is ON/OFF, providing straightforward control. This power switch is utilized in automotive applications and industrial automation, where robust power distribution and protection are critical. The supplier device package is HPAK, and it is supplied in tube packaging.
Additional Information
Series: VIPower™RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TubeDatasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Tube |
| Package / Case | TO-252-7, DPAK (6 Leads + Tab) |
| Output Type | N-Channel |
| Mounting Type | Surface Mount |
| Number of Outputs | 1 |
| Interface | ON/OFF |
| Switch Type | General Purpose |
| Operating Temperature | -40°C ~ 150°C (TJ) |
| Output Configuration | High Side |
| Rds On (Typ) | 3mOhm |
| Input Type | - |
| Voltage - Load | -16V ~ 28V |
| Voltage - Supply (Vcc/Vdd) | Not Required |
| Current - Output (Max) | - |
| Ratio - Input:Output | 1:1 |
| Supplier Device Package | HPAK |
| Fault Protection | - |
