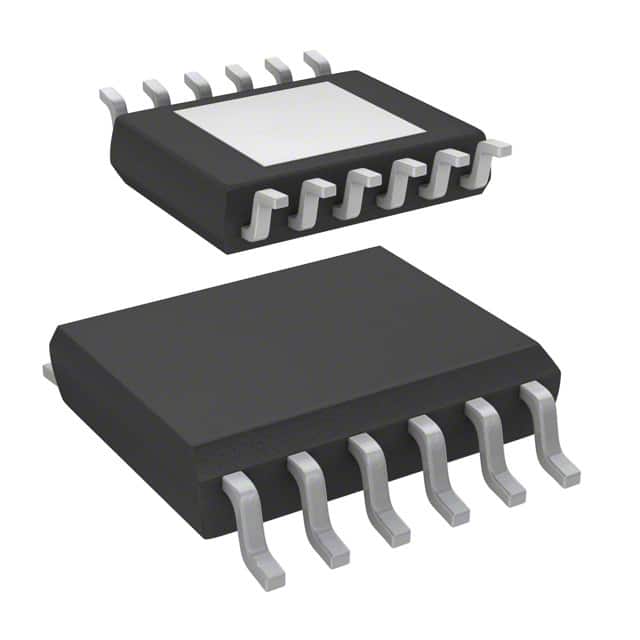

VN5050AJ-E
IC PWR DRVR N-CHAN 1:1 PWRSSO12Manufacturer: STMicroelectronics
Categories: Power Distribution Switches, Load Drivers
Quality Control: Learn More
STMicroelectronics VN5050AJ-E, a VIPower™ series N-channel power switch/driver, offers robust load management capabilities. This device features a 1:1 input-to-output ratio and a maximum output current of 12A, with a typical Rds(on) of 50mOhm. Designed for high-side switching, it integrates comprehensive fault protection including fixed current limiting, over-temperature shutdown, and over-voltage protection, complemented by an auto-restart feature. The VN5050AJ-E operates with a load voltage range of 4.5V to 36V and is housed in a compact PowerSSO-12™ package suitable for surface mounting. Its reliable performance makes it suitable for applications in automotive and industrial automation sectors requiring efficient power distribution control.
Additional Information
Series: VIPower™RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TubeDatasheet:Download Free CAD Model:
Technical Details:
| Features | Auto Restart |
| Packaging | Tube |
| Package / Case | PowerSSO-12 |
| Output Type | N-Channel |
| Mounting Type | Surface Mount |
| Number of Outputs | 1 |
| Interface | ON/OFF |
| Switch Type | General Purpose |
| Operating Temperature | -40°C ~ 150°C (TJ) |
| Output Configuration | High Side |
| Rds On (Typ) | 50mOhm (Max) |
| Input Type | Non-Inverting |
| Voltage - Load | 4.5V ~ 36V |
| Voltage - Supply (Vcc/Vdd) | Not Required |
| Current - Output (Max) | 12A |
| Ratio - Input:Output | 1:1 |
| Supplier Device Package | PowerSSO-12™ |
| Fault Protection | Current Limiting (Fixed), Over Temperature, Over Voltage |
