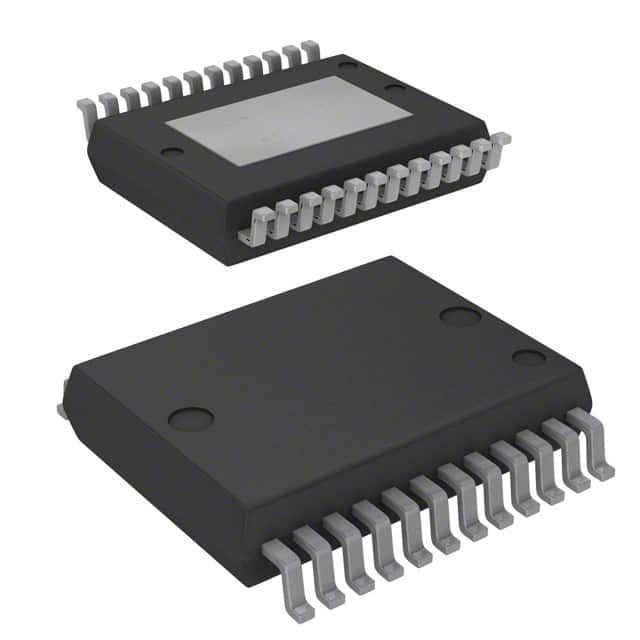

VN5012AK-E
IC PWR DRVR N-CHAN 1:1 PWRSSO24Manufacturer: STMicroelectronics
Categories: Power Distribution Switches, Load Drivers
Quality Control: Learn More
STMicroelectronics VN5012AK-E is a high-side power driver from the VIPower™ series. This N-channel device, housed in a PowerSSO-24 package, offers a robust solution for power management applications. It features a 1:1 input-to-output ratio and a maximum output current capability of 45A. Integrated fault protection mechanisms include fixed current limiting, over-temperature shutdown, and over-voltage protection, complemented by an auto-restart feature. The device operates with an input voltage range of 4.5V to 36V and boasts a typical on-resistance of 12mOhm. Designed for surface mounting, this component is suitable for demanding environments with an operating temperature range of -40°C to 150°C. Applications span automotive and industrial sectors where reliable power distribution and load driving are critical.
Additional Information
Series: VIPower™RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TubeDatasheet:Download Free CAD Model:
Technical Details:
| Features | Auto Restart |
| Packaging | Tube |
| Package / Case | 24-PowerBSOP (0.295"", 7.50mm Width) |
| Output Type | N-Channel |
| Mounting Type | Surface Mount |
| Number of Outputs | 1 |
| Interface | ON/OFF |
| Switch Type | General Purpose |
| Operating Temperature | -40°C ~ 150°C (TJ) |
| Output Configuration | High Side |
| Rds On (Typ) | 12mOhm (Max) |
| Input Type | Non-Inverting |
| Voltage - Load | 4.5V ~ 36V |
| Voltage - Supply (Vcc/Vdd) | Not Required |
| Current - Output (Max) | 45A |
| Ratio - Input:Output | 1:1 |
| Supplier Device Package | PowerSSO-24 |
| Fault Protection | Current Limiting (Fixed), Over Temperature, Over Voltage |
