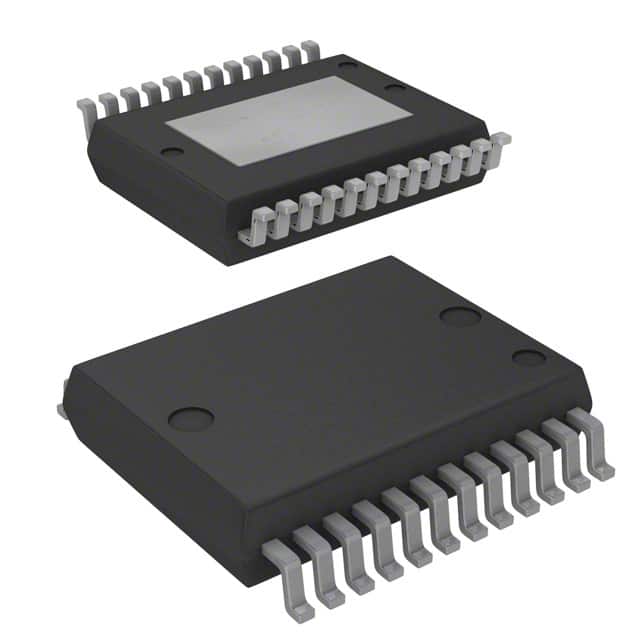

VN5010AK-E
IC PWR DRVR N-CHAN 1:1 PWRSSO24Manufacturer: STMicroelectronics
Categories: Power Distribution Switches, Load Drivers
Quality Control: Learn More
STMicroelectronics VN5010AK-E is a single-channel N-channel power distribution switch from the VIPower™ series. This device, housed in a PowerSSO-24 package, offers robust load driving capabilities with a maximum output current of 46A and a typical on-resistance of 10mOhm. It features comprehensive fault protection including fixed current limiting, over-temperature, and over-voltage protection, complemented by an auto-restart feature. The VN5010AK-E operates across a load voltage range of 4.5V to 36V and is designed for surface mounting. Its high-side N-channel output configuration and general-purpose switch type make it suitable for applications in automotive and industrial control systems requiring reliable power management.
Additional Information
Series: VIPower™RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TubeDownload Free CAD Model:
Technical Details:
| Features | Auto Restart |
| Packaging | Tube |
| Package / Case | 24-PowerBSOP (0.295"", 7.50mm Width) |
| Output Type | N-Channel |
| Mounting Type | Surface Mount |
| Number of Outputs | 1 |
| Interface | ON/OFF |
| Switch Type | General Purpose |
| Operating Temperature | -40°C ~ 150°C (TJ) |
| Output Configuration | High Side |
| Rds On (Typ) | 10mOhm (Max) |
| Input Type | Non-Inverting |
| Voltage - Load | 4.5V ~ 36V |
| Voltage - Supply (Vcc/Vdd) | Not Required |
| Current - Output (Max) | 46A |
| Ratio - Input:Output | 1:1 |
| Supplier Device Package | PowerSSO-24 |
| Fault Protection | Current Limiting (Fixed), Over Temperature, Over Voltage |
