VN330SP-E
IC PWR DRIVER N-CHAN 1:1 PWRSO10Manufacturer: STMicroelectronics
Categories: Power Distribution Switches, Load Drivers
Quality Control: Learn More
Power Switch/Driver 1:1 N-Channel 700mA 10-PowerSO
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 16 week(s)Product Status: ActivePackaging: TubeDatasheet:Download Free CAD Model:
Technical Details:
| Features | Status Flag |
| Packaging | Tube |

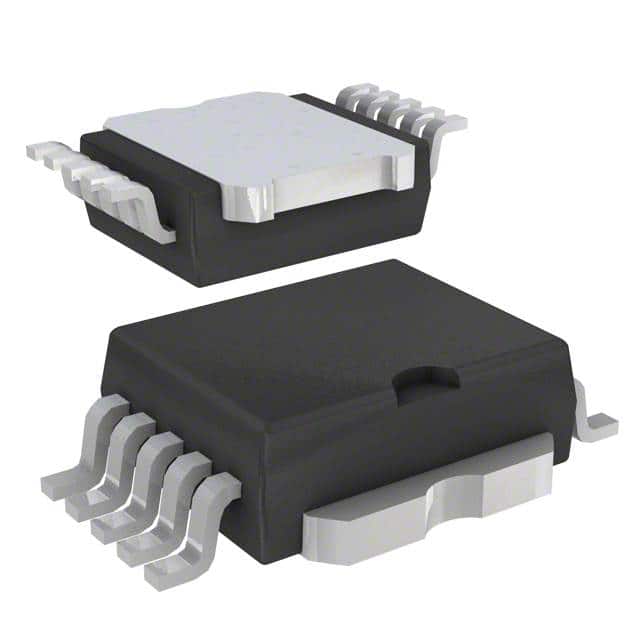

| Package / Case | PowerSO-10 Exposed Bottom Pad |
| Output Type | N-Channel |
| Mounting Type | Surface Mount |
| Number of Outputs | 4 |
| Interface | ON/OFF |
| Switch Type | General Purpose |
| Operating Temperature | -40°C ~ 125°C (TJ) |
| Output Configuration | High Side |
| Rds On (Typ) | 200mOhm (Max) |
| Input Type | Non-Inverting |
| Voltage - Load | 10V ~ 36V |
| Voltage - Supply (Vcc/Vdd) | Not Required |
| Current - Output (Max) | 700mA |
| Ratio - Input:Output | 1:1 |
| Supplier Device Package | 10-PowerSO |
| Fault Protection | Current Limiting (Fixed), Over Temperature |
