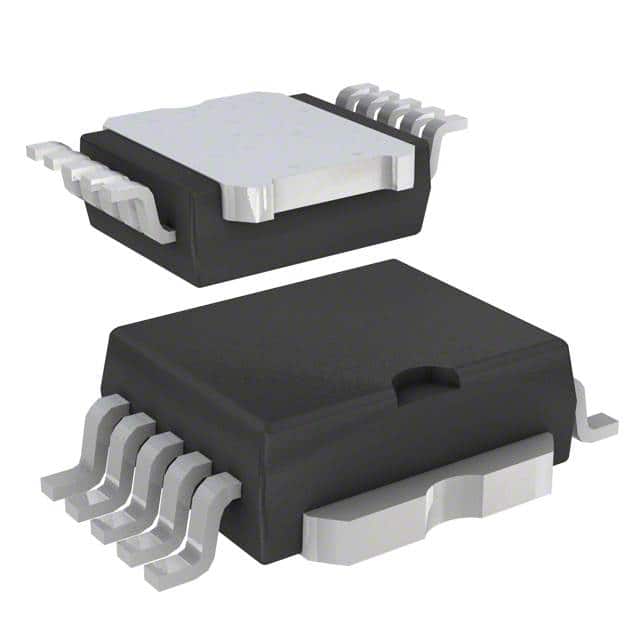

VB526SPTR-E
IC PWR DRVR BIPOLAR 1:1 PWRSO10Manufacturer: STMicroelectronics
Categories: Power Distribution Switches, Load Drivers
Quality Control: Learn More
STMicroelectronics VB526SPTR-E is a bipolar power driver designed for general-purpose applications. This surface-mount component, housed in a 10-PowerSO package, features a 1:1 input-to-output ratio and a maximum output current of 100mA. The device offers robust fault protection, including over-temperature and over-voltage capabilities, and includes a status flag for monitoring. Its output configuration is low-side with a bipolar output type, operating within a voltage load range of up to 30V and a supply voltage of 4.5V to 5.5V. Operating temperature ranges from -40°C to 150°C (TJ). This component is suitable for use in industrial and automotive sectors.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Features | Status Flag |
| Packaging | Tape & Reel (TR) |
| Package / Case | PowerSO-10 Exposed Bottom Pad |
| Output Type | Bipolar |
| Mounting Type | Surface Mount |
| Number of Outputs | 1 |
| Interface | Parallel |
| Switch Type | General Purpose |
| Operating Temperature | -40°C ~ 150°C (TJ) |
| Output Configuration | Low Side |
| Rds On (Typ) | - |
| Input Type | Non-Inverting |
| Voltage - Load | 30V (Max) |
| Voltage - Supply (Vcc/Vdd) | 4.5V ~ 5.5V |
| Current - Output (Max) | 100mA |
| Ratio - Input:Output | 1:1 |
| Supplier Device Package | 10-PowerSO |
| Fault Protection | Over Temperature, Over Voltage |
