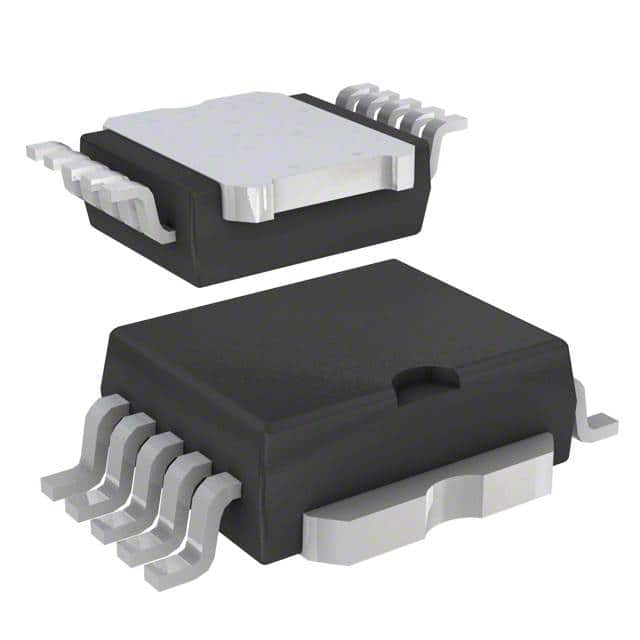

VB325SP-E
IC PWR DRVR BIPOLAR 1:1 PWRSO10Manufacturer: STMicroelectronics
Categories: Power Distribution Switches, Load Drivers
Quality Control: Learn More
The STMicroelectronics VIPower™ VB325SP-E is a single-channel, bipolar power switch/driver designed for high-side or low-side applications. This component features a 1:1 input-to-output ratio, capable of delivering a maximum output current of 10A. The device includes over-temperature fault protection and a status flag for monitoring operational conditions. Its non-inverting input and parallel interface simplify integration into existing designs. Operating within a supply voltage range of 4.5V to 5.5V, the VB325SP-E supports load voltages up to 30V. The component is housed in a 10-PowerSO package with an exposed bottom pad for enhanced thermal performance, suitable for surface mounting. This device finds utility in various industrial sectors including automotive and general industrial control systems.
Additional Information
Series: VIPower™RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TubeDatasheet:Download Free CAD Model:
Technical Details:
| Features | Status Flag |
| Packaging | Tube |
| Package / Case | PowerSO-10 Exposed Bottom Pad |
| Output Type | Bipolar |
| Mounting Type | Surface Mount |
| Number of Outputs | 1 |
| Interface | Parallel |
| Switch Type | General Purpose |
| Operating Temperature | -40°C ~ 150°C (TJ) |
| Output Configuration | Low Side |
| Rds On (Typ) | - |
| Input Type | Non-Inverting |
| Voltage - Load | 30V (Max) |
| Voltage - Supply (Vcc/Vdd) | 4.5V ~ 5.5V |
| Current - Output (Max) | 10A |
| Ratio - Input:Output | 1:1 |
| Supplier Device Package | 10-PowerSO |
| Fault Protection | Over Temperature |
