VB325SP
IC PWR DRVR BIPOLAR 1:1 PWRSO10Manufacturer: STMicroelectronics
Categories: Power Distribution Switches, Load Drivers
Quality Control: Learn More
This STMicroelectronics VIPower™ series device, part number VB325SP, is a bipolar power switch with a 1:1 input-to-output ratio. Designed for general-purpose switching, it features a robust 10A maximum output current capability and a 30V maximum load voltage rating. The device operates from a 4.5V to 5.5V supply and includes over-temperature fault protection, along with a status flag for monitoring. Its output is configured as a low-side bipolar driver. The VB325SP is supplied in a 10-PowerSO package with an exposed bottom pad, suitable for surface mounting. This component finds application in automotive and industrial control systems requiring reliable power management.
Additional Information
Series: VIPower™RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TubeDownload Free CAD Model:
Technical Details:
| Features | Status Flag |
| Packaging | Tube |

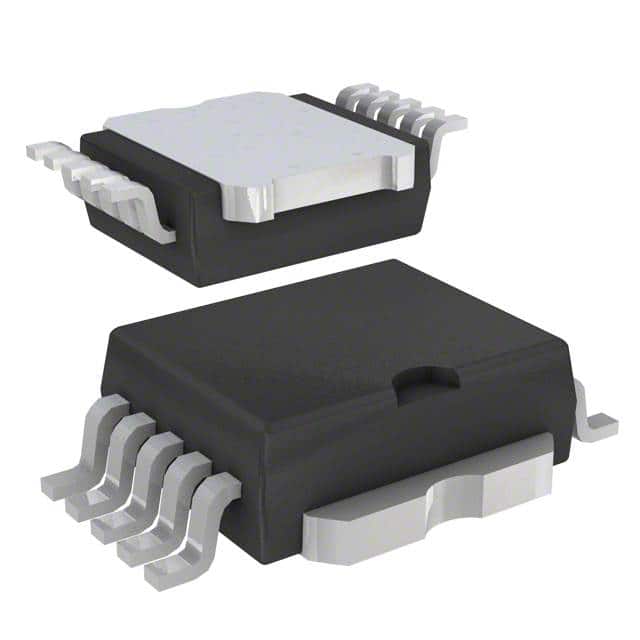

| Package / Case | PowerSO-10 Exposed Bottom Pad |
| Output Type | Bipolar |
| Mounting Type | Surface Mount |
| Number of Outputs | 1 |
| Interface | Parallel |
| Switch Type | General Purpose |
| Operating Temperature | -40°C ~ 150°C (TJ) |
| Output Configuration | Low Side |
| Rds On (Typ) | - |
| Input Type | Non-Inverting |
| Voltage - Load | 30V (Max) |
| Voltage - Supply (Vcc/Vdd) | 4.5V ~ 5.5V |
| Current - Output (Max) | 10A |
| Ratio - Input:Output | 1:1 |
| Supplier Device Package | 10-PowerSO |
| Fault Protection | Over Temperature |
