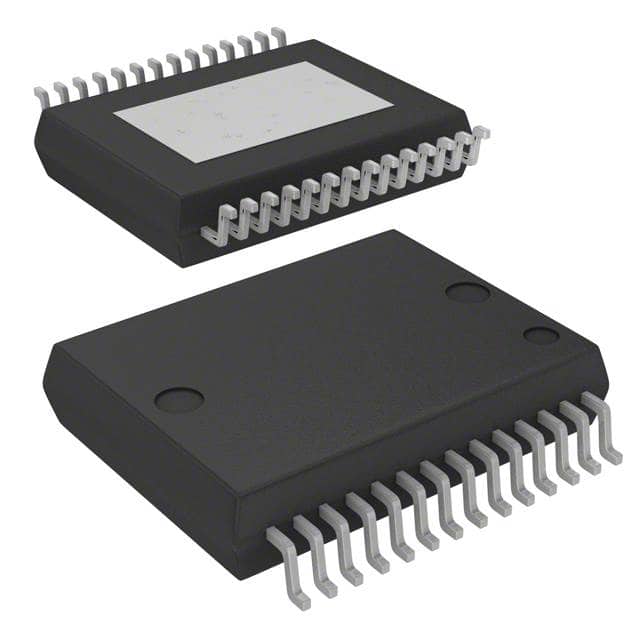

L9733CN
IC PWR DRVR N-CHAN 1:8 PWRSSO28Manufacturer: STMicroelectronics
Categories: Power Distribution Switches, Load Drivers
Quality Control: Learn More
Power Switch/Driver 1:8 N-Channel 1A PowerSSO-28
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ActivePackaging: TubeDatasheet:Download Free CAD Model:
Technical Details:
| Features | PWM Input |
| Packaging | Tube |
| Package / Case | 28-SSOP (0.295"", 7.50mm Width) Exposed Pad |
| Output Type | N-Channel |
| Mounting Type | Surface Mount |
| Number of Outputs | 8 |
| Interface | SPI |
| Switch Type | General Purpose |
| Operating Temperature | -40°C ~ 125°C (TA) |
| Output Configuration | High Side or Low Side |
| Rds On (Typ) | 700mOhm (Max) |
| Input Type | Non-Inverting |
| Voltage - Load | 4.5V ~ 18V |
| Voltage - Supply (Vcc/Vdd) | 4.5V ~ 5.5V |
| Current - Output (Max) | 1A |
| Ratio - Input:Output | 1:8 |
| Supplier Device Package | PowerSSO-28 |
| Fault Protection | Open Load Detect, Over Temperature |
