L9347LF-TR

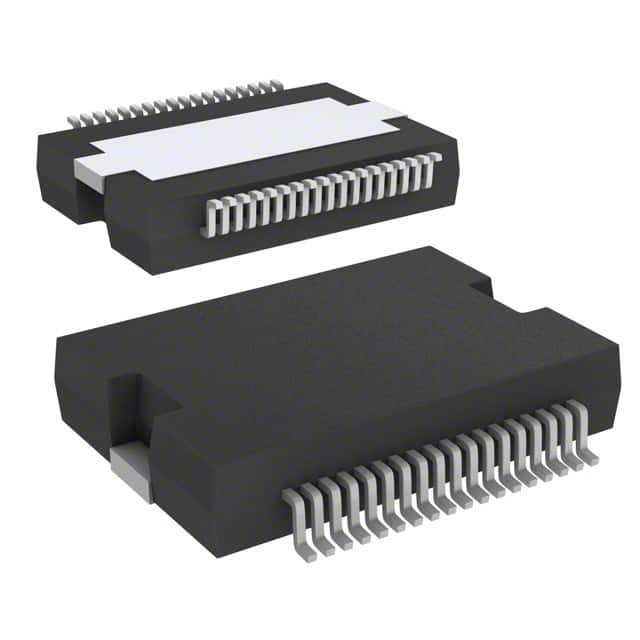

IC PWR DRIVER N-CHAN 1:1 PWRSO36Manufacturer: STMicroelectronics
Categories: Power Distribution Switches, Load Drivers
Quality Control: Learn More
STMicroelectronics L9347LF-TR is a 4-channel N-channel power switch/driver designed for general-purpose applications. This component, supplied in a Tape & Reel (TR) package, features a 1:1 input-to-output ratio and is rated for a load voltage range of 4.8V to 18V. Each output can deliver up to 5A, with a maximum continuous current of 2.5A per channel. The L9347LF-TR incorporates fault protection mechanisms including open load detection and over-temperature protection, and provides a status flag for monitoring. It is designed for surface mounting within the 36-PowerBSSOP (PowerSO-36) package, featuring a bottom pad for enhanced thermal dissipation. This device is commonly utilized in automotive and industrial control systems.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Features | Status Flag |
| Packaging | Tape & Reel (TR) |
| Package / Case | 36-PowerBSSOP (0.433"", 11.00mm Width) |
| Output Type | N-Channel |
| Mounting Type | Surface Mount |
| Number of Outputs | 4 |
| Interface | ON/OFF |
| Switch Type | General Purpose |
| Operating Temperature | -40°C ~ 150°C (TJ) |
| Output Configuration | Low Side |
| Rds On (Typ) | - |
| Input Type | Non-Inverting |
| Voltage - Load | 4.8V ~ 18V |
| Voltage - Supply (Vcc/Vdd) | Not Required |
| Current - Output (Max) | 2.5A, 5A |
| Ratio - Input:Output | 1:1 |
| Supplier Device Package | PowerSO-36, Bottom Pad |
| Fault Protection | Open Load Detect, Over Temperature |
