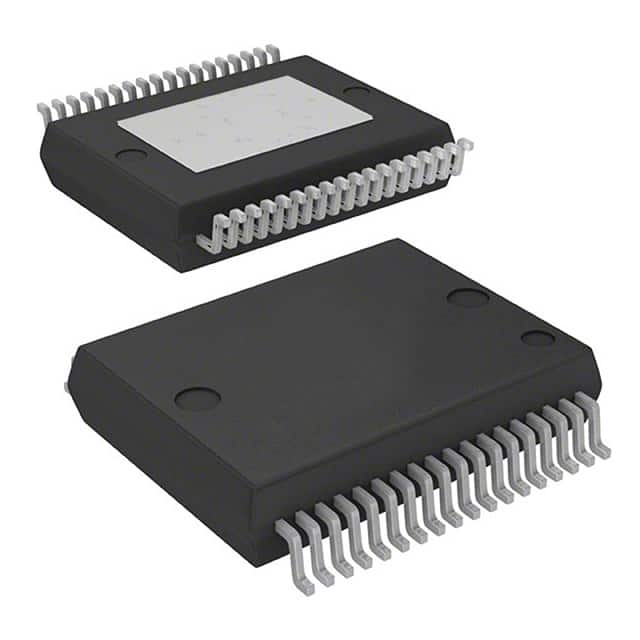

L9301-TR
IC PWR DRIVER N-CHANNEL PWRSSO36Manufacturer: STMicroelectronics
Categories: Power Distribution Switches, Load Drivers
Quality Control: Learn More
STMicroelectronics L9301-TR is a 12-channel N-channel power driver designed for general-purpose applications. This device features integrated fault protection including fixed current limiting and over-temperature shutdown, enhancing system reliability. The L9301-TR offers flexible output configuration, supporting both high-side and low-side switching, and provides parallel and SPI interfaces for control. Engineered for demanding environments, this component is qualified to AEC-Q100 standards and operates within an automotive grade temperature range of -40°C to 125°C. It is supplied in a 36-PowerFSOP (PowerSSO-36 EPD) package on tape and reel, suitable for surface mounting. This power driver is commonly utilized in automotive systems and industrial automation.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 36 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Tape & Reel (TR) |
| Package / Case | 36-PowerFSOP (0.295"", 7.50mm Width) |
| Output Type | N-Channel |
| Mounting Type | Surface Mount |
| Number of Outputs | 12 |
| Interface | SPI, Parallel |
| Switch Type | General Purpose |
| Operating Temperature | -40°C ~ 125°C (TA) |
| Output Configuration | High Side or Low Side |
| Rds On (Typ) | - |
| Input Type | - |
| Voltage - Load | 5V ~ 18V |
| Voltage - Supply (Vcc/Vdd) | 4.75V ~ 5.25V |
| Current - Output (Max) | - |
| Ratio - Input:Output | - |
| Supplier Device Package | PowerSSO-36 EPD |
| Fault Protection | Current Limiting (Fixed), Over Temperature |
| Grade | Automotive |
| Qualification | AEC-Q100 |
