L9026-B03N-TR
CONFIGURABLE MULTI CHANNEL RELAYManufacturer: STMicroelectronics
Categories: Power Distribution Switches, Load Drivers
Quality Control: Learn More

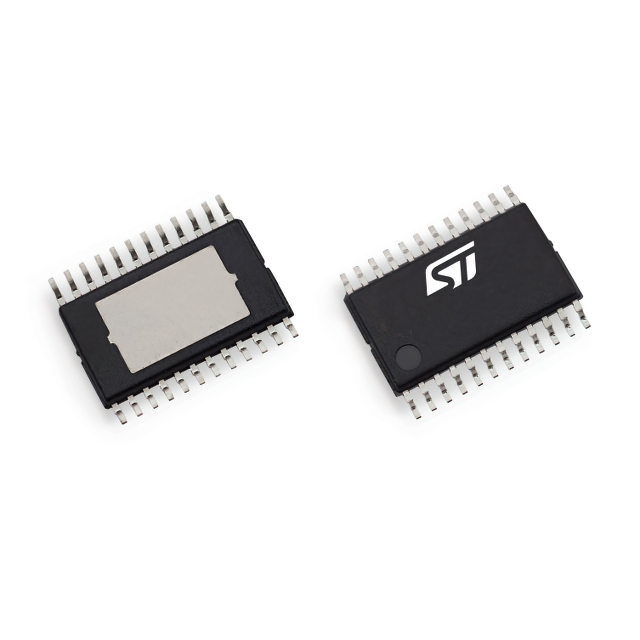

STMicroelectronics L9026-B03N-TR is an 8-channel configurable power switch/driver designed for automotive applications, qualified to AEC-Q100 standards. This high-side or low-side configurable device operates with a load voltage range of 6V to 28V. Key features include slew rate control, fixed current limiting, open load detection, over-temperature protection, and short-circuit protection, ensuring robust operation in demanding environments. The component supports PWM and SPI interfaces for flexible control. Supplied in a 24-HTSSOP (0.173", 4.40mm Width) Exposed Pad package, it is delivered on tape and reel. The L9026-B03N-TR is suitable for use in automotive systems such as body control modules and lighting control.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 36 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Features | Slew Rate Controlled |
| Packaging | Tape & Reel (TR) |
| Package / Case | 24-TSSOP (0.173"", 4.40mm Width) Exposed Pad |
| Output Type | - |
| Mounting Type | Surface Mount |
| Number of Outputs | 8 |
| Interface | PWM, SPI |
| Switch Type | General Purpose |
| Operating Temperature | -40°C ~ 125°C (TA) |
| Output Configuration | High Side or Low Side |
| Rds On (Typ) | - |
| Input Type | Non-Inverting |
| Voltage - Load | 6V ~ 28V |
| Voltage - Supply (Vcc/Vdd) | Not Required |
| Current - Output (Max) | - |
| Ratio - Input:Output | 1:1 |
| Supplier Device Package | 24-HTSSOP |
| Fault Protection | Current Limiting (Fixed), Open Load Detect, Over Temperature, Short Circuit |
| Grade | Automotive |
| Qualification | AEC-Q100 |
