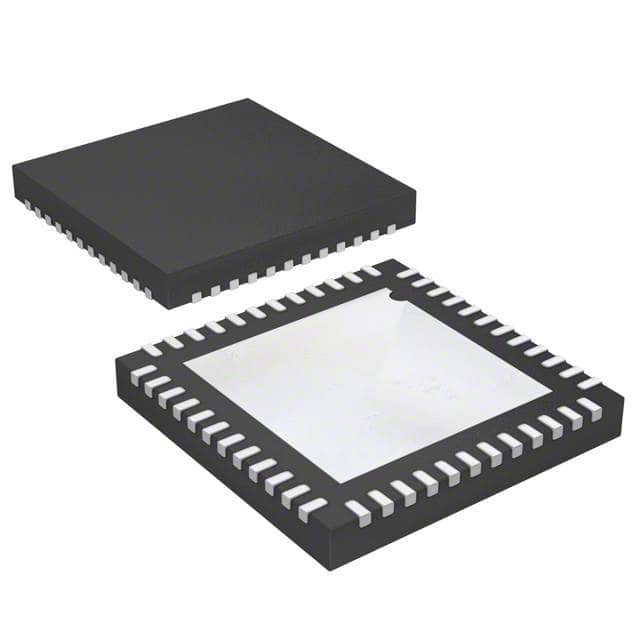

L6370QTR
IC PWR SWITCH N-CHAN 1:1 48QFNManufacturer: STMicroelectronics
Categories: Power Distribution Switches, Load Drivers
Quality Control: Learn More
The STMicroelectronics L6370QTR is a high-side power switch with a 1:1 input-to-output ratio, featuring a single N-channel output capable of delivering up to 2.5A. This device integrates fixed current limiting, open load detection, over-temperature protection, and undervoltage lockout (UVLO) for robust power management. A status flag provides output condition monitoring. Designed for surface mounting, it is supplied in a 48-QFN (7x7) package. The L6370QTR is suitable for applications in automotive and industrial sectors requiring reliable load driving and protection. Typical ON-resistance is 100mOhm. This component operates within a load voltage range of 9.5V to 35V and is rated for junction temperatures from -25°C to 125°C.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Features | Status Flag |
| Packaging | Tape & Reel (TR) |
| Package / Case | 48-VFQFN Exposed Pad |
| Output Type | N-Channel |
| Mounting Type | Surface Mount |
| Number of Outputs | 1 |
| Interface | ON/OFF |
| Switch Type | General Purpose |
| Operating Temperature | -25°C ~ 125°C (TJ) |
| Output Configuration | High Side |
| Rds On (Typ) | 100mOhm |
| Input Type | Differential |
| Voltage - Load | 9.5V ~ 35V |
| Voltage - Supply (Vcc/Vdd) | Not Required |
| Current - Output (Max) | 2.5A |
| Ratio - Input:Output | 1:1 |
| Supplier Device Package | 48-QFN (7x7) |
| Fault Protection | Current Limiting (Fixed), Open Load Detect, Over Temperature, UVLO |
