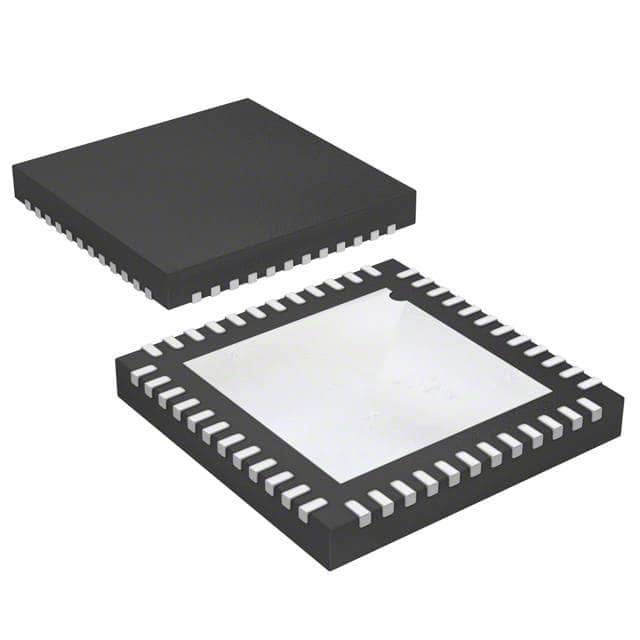

L6370Q
IC PWR SWITCH N-CHAN 1:1 48QFNManufacturer: STMicroelectronics
Categories: Power Distribution Switches, Load Drivers
Quality Control: Learn More
The STMicroelectronics L6370Q is a high-side power switch and driver designed for demanding applications. This N-channel device features a 1:1 ratio and supports a continuous output current of up to 2.5A. Integrated fault protection includes fixed current limiting, open load detection, over-temperature protection, and undervoltage lockout (UVLO). The L6370Q offers a status flag for monitoring and utilizes a differential input with ON/OFF interface control. Its surface mountable 48-QFN (7x7) package with an exposed pad ensures efficient thermal management. With a typical Rds On of 100mOhm, it is suitable for load voltages ranging from 9.5V to 35V. This component finds application in automotive systems, industrial automation, and power management solutions.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TrayDatasheet:Download Free CAD Model:
Technical Details:
| Features | Status Flag |
| Packaging | Tray |
| Package / Case | 48-VFQFN Exposed Pad |
| Output Type | N-Channel |
| Mounting Type | Surface Mount |
| Number of Outputs | 1 |
| Interface | ON/OFF |
| Switch Type | General Purpose |
| Operating Temperature | -25°C ~ 125°C (TJ) |
| Output Configuration | High Side |
| Rds On (Typ) | 100mOhm |
| Input Type | Differential |
| Voltage - Load | 9.5V ~ 35V |
| Voltage - Supply (Vcc/Vdd) | Not Required |
| Current - Output (Max) | 2.5A |
| Ratio - Input:Output | 1:1 |
| Supplier Device Package | 48-QFN (7x7) |
| Fault Protection | Current Limiting (Fixed), Open Load Detect, Over Temperature, UVLO |
