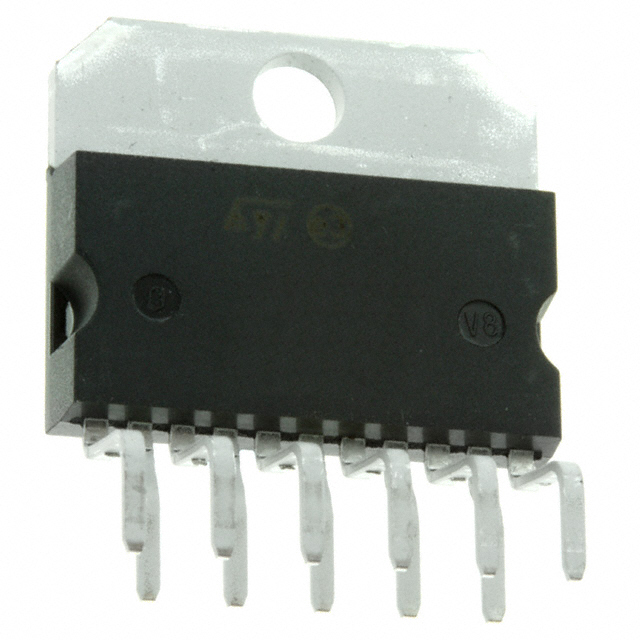

L6370L
IC PWR SWTCH N-CH 1:1 11MULTWATTManufacturer: STMicroelectronics
Categories: Power Distribution Switches, Load Drivers
Quality Control: Learn More
The STMicroelectronics L6370L is a high-side power switch with a robust N-channel output, capable of delivering up to 2.5A. This component features integrated fault protection including fixed current limiting, open load detection, over-temperature protection, and undervoltage lockout (UVLO). A status flag provides essential output information. The L6370L is designed for general-purpose switching applications and operates within a load voltage range of 9.5V to 35V. Its input interface is controlled via an ON/OFF signal, with a differential input type. Mounting is facilitated through a through-hole configuration in an 11-Multiwatt package. This device finds application in automotive and industrial control systems requiring reliable power distribution and load management.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TubeDownload Free CAD Model:
Technical Details:
| Features | Status Flag |
| Packaging | Tube |
| Package / Case | 11-Multiwatt |
| Output Type | N-Channel |
| Mounting Type | Through Hole |
| Number of Outputs | 1 |
| Interface | ON/OFF |
| Switch Type | General Purpose |
| Operating Temperature | -25°C ~ 85°C (TJ) |
| Output Configuration | High Side |
| Rds On (Typ) | - |
| Input Type | Differential |
| Voltage - Load | 9.5V ~ 35V |
| Voltage - Supply (Vcc/Vdd) | Not Required |
| Current - Output (Max) | 2.5A |
| Ratio - Input:Output | 1:1 |
| Supplier Device Package | 11-Multiwatt |
| Fault Protection | Current Limiting (Fixed), Open Load Detect, Over Temperature, UVLO |
