ISO808TR-1
GALVANIC ISOLATED OCTAL HIGH-SIDManufacturer: STMicroelectronics
Categories: Power Distribution Switches, Load Drivers
Quality Control: Learn More

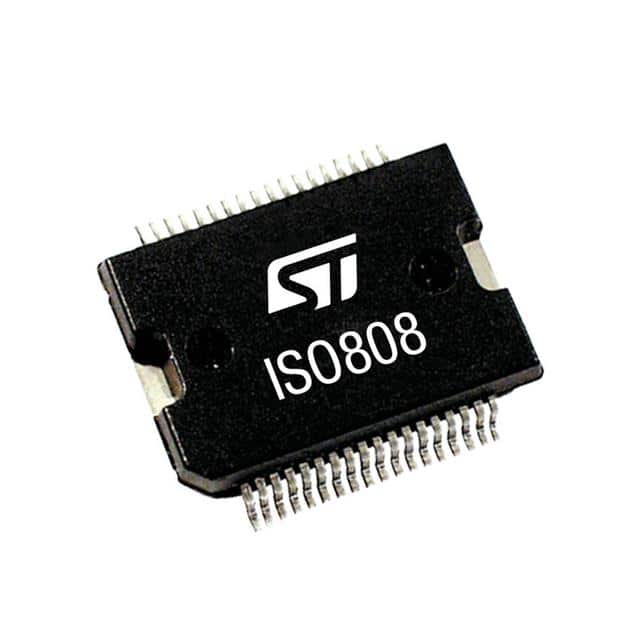

The STMicroelectronics ISO808TR-1 is a galvanic isolated octal high-side power switch/driver, packaged in a 36-PowerBSSOP (0.433", 11.00mm Width) with bottom pad. This versatile component features eight N-Channel outputs, each capable of delivering up to 1A. Designed for robust operation, it incorporates comprehensive fault protection including fixed current limiting, over-voltage, over-temperature, reverse battery protection, short circuit protection, and undervoltage lockout (UVLO). Key features include auto-restart, a status flag for monitoring, and an integrated watchdog timer. The device operates from a supply voltage range of 2.75V to 5.5V and supports load voltages from 9.2V to 36V. Its 1:1 input-to-output ratio and parallel interface facilitate straightforward integration. With a typical Rds On of 125mOhm, the ISO808TR-1 is suitable for demanding applications in industrial automation, automotive systems, and power management solutions. The component is supplied on tape and reel (TR).
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 25 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Features | Auto Restart, Status Flag, Watchdog Timer |
| Packaging | Tape & Reel (TR) |
| Package / Case | 36-PowerBSSOP (0.433"", 11.00mm Width) |
| Output Type | N-Channel |
| Mounting Type | Surface Mount |
| Number of Outputs | 8 |
| Interface | Parallel |
| Switch Type | Relay, Solenoid Driver |
| Operating Temperature | -40°C ~ 125°C (TJ) |
| Output Configuration | High Side |
| Rds On (Typ) | 125mOhm |
| Input Type | CMOS |
| Voltage - Load | 9.2V ~ 36V |
| Voltage - Supply (Vcc/Vdd) | 2.75V ~ 5.5V |
| Current - Output (Max) | 1A |
| Ratio - Input:Output | 1:1 |
| Supplier Device Package | PowerSO-36, Bottom Pad |
| Fault Protection | Current Limiting (Fixed), Over Voltage, Over Temperature, Reverse Battery, Short Circuit, UVLO |
