ISO808ATR-1
LINEAR IC'SManufacturer: STMicroelectronics
Categories: Power Distribution Switches, Load Drivers
Quality Control: Learn More

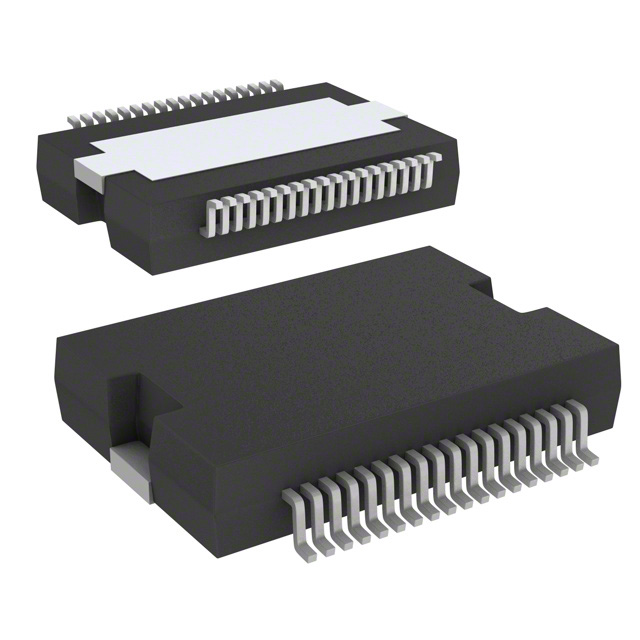

STMicroelectronics ISO808ATR-1 is a high-side power switch featuring eight N-channel outputs, each capable of delivering up to 2.3A. This device provides comprehensive fault protection including fixed current limiting, overload, over-temperature, over-voltage, reverse current protection, and undervoltage lockout (UVLO). Key features include auto-restart functionality, a Power Good output, and a status flag for monitoring. The interface options include On/Off control and SPI communication. Designed for surface mounting, it is housed in a 36-PowerBSSOP (PowerSO-36, Bottom Pad) package. The operating temperature range is -40°C to 125°C (TJ). Applications include industrial automation, automotive systems, and general power distribution.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 30 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Download Free CAD Model:
Technical Details:
| Features | Auto Restart, Power Good, Status Flag |
| Packaging | Tape & Reel (TR) |
| Package / Case | 36-PowerBSSOP (0.433"", 11.00mm Width) |
| Output Type | N-Channel |
| Mounting Type | Surface Mount |
| Number of Outputs | 8 |
| Interface | On/Off, SPI |
| Switch Type | Relay, Solenoid Driver |
| Operating Temperature | -40°C ~ 125°C (TJ) |
| Output Configuration | High Side |
| Rds On (Typ) | 125mOhm |
| Input Type | Non-Inverting |
| Voltage - Load | 9.2V ~ 36V |
| Voltage - Supply (Vcc/Vdd) | 9.2V ~ 36V |
| Current - Output (Max) | 2.3A |
| Ratio - Input:Output | 1:8 |
| Supplier Device Package | PowerSO-36, Bottom Pad |
| Fault Protection | Current Limiting (Fixed), Over Load, Over Temperature, Over Voltage, Reverse Current, UVLO |
