IPS8160HQ
0.5A OCTAL HIGH SIDE DRIVERManufacturer: STMicroelectronics
Categories: Power Distribution Switches, Load Drivers
Quality Control: Learn More
Power Switch/Driver 1:1 N-Channel 700mA 48-QFN (8x6)
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 25 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Features | Auto Restart, Status Flag |
| Packaging | Tape & Reel (TR) |

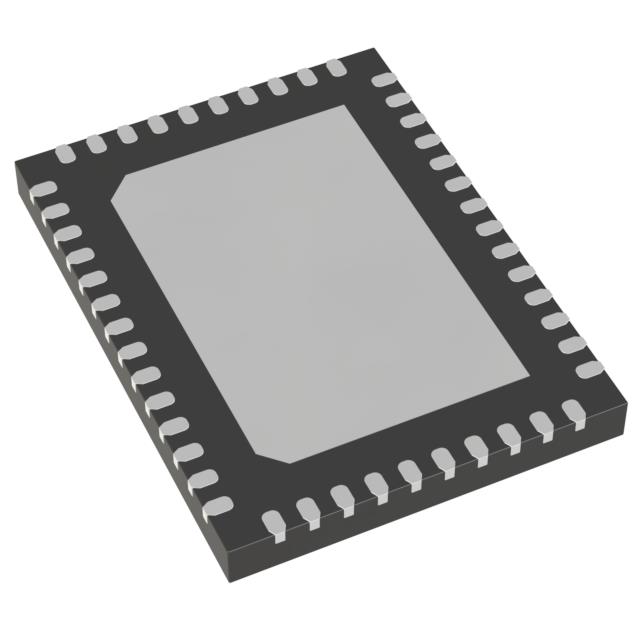

| Package / Case | 48-VFQFN Exposed Pad |
| Output Type | N-Channel |
| Mounting Type | Surface Mount |
| Number of Outputs | 8 |
| Interface | ON/OFF |
| Switch Type | General Purpose |
| Operating Temperature | -40°C ~ 125°C (TJ) |
| Output Configuration | High Side |
| Rds On (Typ) | 160mOhm (Max) |
| Input Type | CMOS |
| Voltage - Load | 7V ~ 45V |
| Voltage - Supply (Vcc/Vdd) | 7V ~ 45V |
| Current - Output (Max) | 700mA |
| Ratio - Input:Output | 1:1 |
| Supplier Device Package | 48-QFN (8x6) |
| Fault Protection | Current Limiting (Fixed), Over Load, Over Temperature, Reverse Battery, Short Circuit, UVLO |
