IPS2050HQ-32
HIGH EFFICIENCY, HIGH-SIDE SWITCManufacturer: STMicroelectronics
Categories: Power Distribution Switches, Load Drivers
Quality Control: Learn More
STMicroelectronics IPS2050HQ-32 is a high-efficiency, high-side power switch featuring a 1:1 N-Channel configuration. This component boasts a maximum output current of 5.6A and a low typcial Rds(on) of 25mOhm. Designed for robust operation, it incorporates comprehensive fault protection including fixed current limiting, overload, over-temperature, over-voltage, and undervoltage lockout (UVLO). The device operates from an 8V to 60V supply and offers a logic interface for control. Its 48-QFN (8x6) exposed pad package facilitates surface mounting. This power switch is suitable for demanding applications in the automotive, industrial automation, and power management sectors, offering reliable load control and protection.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 25 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Tape & Reel (TR) |

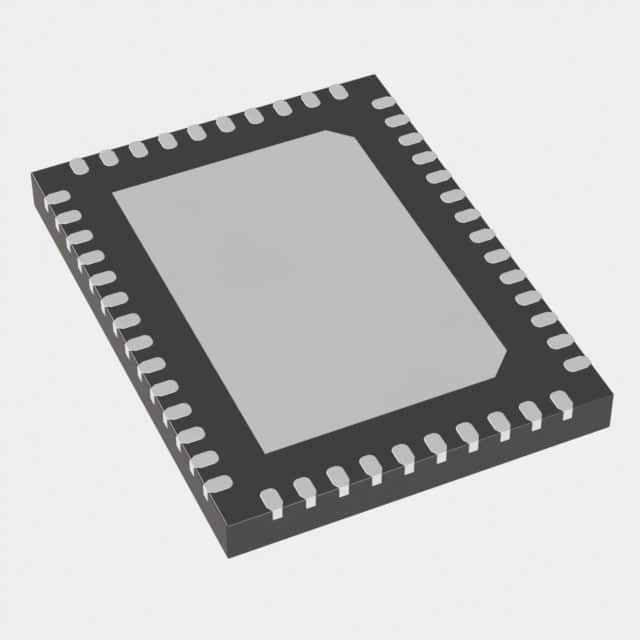

| Package / Case | 48-VFQFN Exposed Pad |
| Output Type | N-Channel |
| Mounting Type | Surface Mount |
| Number of Outputs | 2 |
| Interface | Logic |
| Switch Type | General Purpose |
| Operating Temperature | -40°C ~ 150°C |
| Output Configuration | High Side |
| Rds On (Typ) | 25mOhm |
| Input Type | Non-Inverting |
| Voltage - Load | - |
| Voltage - Supply (Vcc/Vdd) | 8V ~ 60V |
| Current - Output (Max) | 5.6A |
| Ratio - Input:Output | 1:1 |
| Supplier Device Package | 48-QFN (8x6) |
| Fault Protection | Current Limiting (Fixed), Over Load, Over Temperature, Over Voltage, UVLO |
