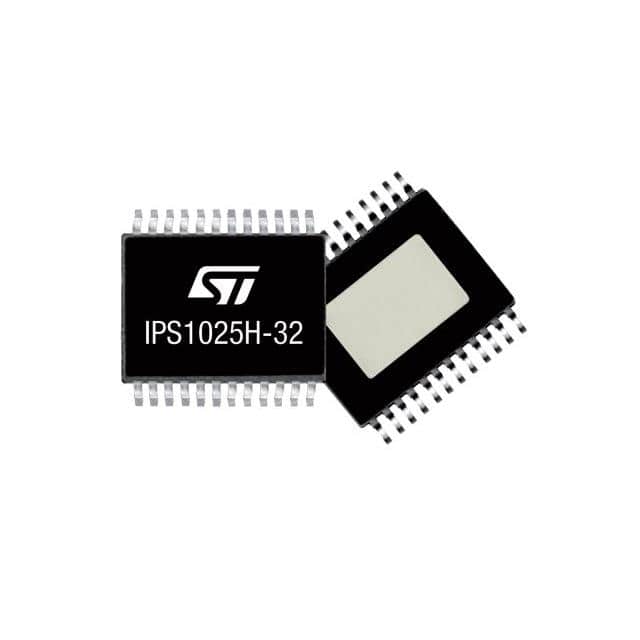

IPS1025HTR-32
IPS1025Manufacturer: STMicroelectronics
Categories: Power Distribution Switches, Load Drivers
Quality Control: Learn More
STMicroelectronics IPS1025HTR-32 is a high-side N-channel power switch featuring a 1:1 ratio and a maximum output current of 5A. This component operates within a supply voltage range of 8V to 60V and offers a typical on-resistance of 12mOhm. Designed for general-purpose switching applications, it integrates comprehensive fault protection mechanisms, including adjustable current limiting, open load detection, over-temperature protection, reverse current protection, and undervoltage lockout (UVLO). The device is housed in a 24-PowerBSOP (7.50mm width) package suitable for surface mounting. Its logic interface allows for straightforward integration into control systems. Applications for this power switch can be found in automotive systems, industrial automation, and power management solutions where robust load driving and protection are critical. The IPS1025HTR-32 is supplied in a Tape & Reel (TR) package.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 25 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Tape & Reel (TR) |
| Package / Case | 24-PowerBSOP (0.295"", 7.50mm Width) |
| Output Type | N-Channel |
| Mounting Type | Surface Mount |
| Number of Outputs | 1 |
| Interface | Logic |
| Switch Type | General Purpose |
| Operating Temperature | -40°C ~ 150°C |
| Output Configuration | High Side |
| Rds On (Typ) | 12mOhm |
| Input Type | Non-Inverting |
| Voltage - Load | - |
| Voltage - Supply (Vcc/Vdd) | 8V ~ 60V |
| Current - Output (Max) | 5A |
| Ratio - Input:Output | 1:1 |
| Supplier Device Package | PowerSSO-24 |
| Fault Protection | Current Limiting (Adjustable), Open Load Detect, Over Temperature, Reverse Current, UVLO |
