IPS1025HTR
IPS1025Manufacturer: STMicroelectronics
Categories: Power Distribution Switches, Load Drivers
Quality Control: Learn More

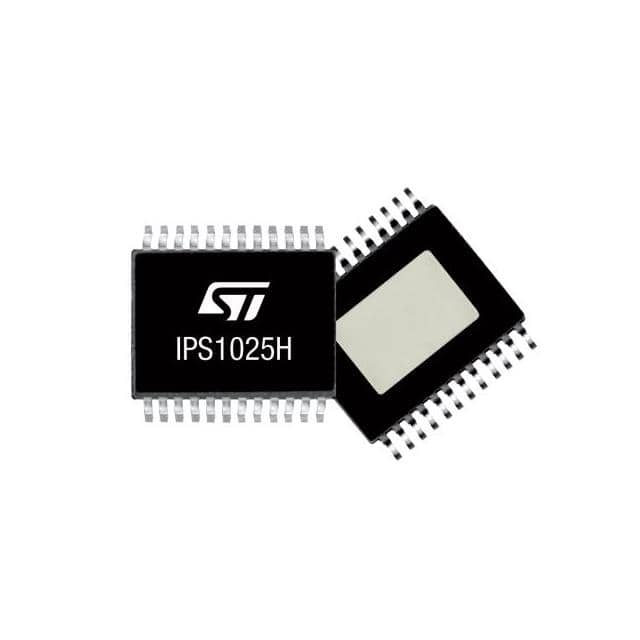

The STMicroelectronics IPS1025HTR is a high-side N-channel power switch designed for robust power control applications. Featuring a 1:1 input-to-output ratio and capable of handling up to 5A output current, this device offers a low typical on-resistance of 12mOhm. Its comprehensive fault protection includes adjustable current limiting, open load detection, over-temperature protection, reverse current protection, and undervoltage lockout (UVLO). The IPS1025HTR operates from an 8V to 60V supply voltage and is housed in a 24-PowerBSOP (PowerSSO-24) package, suitable for surface mounting. This component is commonly utilized in automotive, industrial automation, and power management systems where reliable load switching and protection are critical.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 25 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Tape & Reel (TR) |
| Package / Case | 24-PowerBSOP (0.295"", 7.50mm Width) |
| Output Type | N-Channel |
| Mounting Type | Surface Mount |
| Number of Outputs | 1 |
| Interface | Logic |
| Switch Type | General Purpose |
| Operating Temperature | -40°C ~ 150°C |
| Output Configuration | High Side |
| Rds On (Typ) | 12mOhm |
| Input Type | Non-Inverting |
| Voltage - Load | - |
| Voltage - Supply (Vcc/Vdd) | 8V ~ 60V |
| Current - Output (Max) | 5A |
| Ratio - Input:Output | 1:1 |
| Supplier Device Package | PowerSSO-24 |
| Fault Protection | Current Limiting (Adjustable), Open Load Detect, Over Temperature, Reverse Current, UVLO |
