IPS1025HQ-32
HIGH EFFICIENCY, HIGH-SIDE SWITCManufacturer: STMicroelectronics
Categories: Power Distribution Switches, Load Drivers
Quality Control: Learn More
The STMicroelectronics IPS1025HQ-32 is a high-efficiency, high-side power switch designed for demanding applications. This N-Channel device operates from an 8V to 60V supply and delivers a maximum output current of 5.6A with a typical Rds(On) of 12mOhm. Engineered for robust performance, it integrates comprehensive fault protection features including fixed current limiting, overload, over-temperature, reverse current, short circuit, and Undervoltage Lockout (UVLO). The device features a logic interface and is housed in a 48-VFQFN exposed pad package (8x6mm), suitable for surface mounting. Its high-side configuration and 1:1 ratio make it ideal for power distribution and load driving in automotive, industrial automation, and consumer electronics sectors. The IPS1025HQ-32 is supplied in Tape & Reel packaging.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 25 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Tape & Reel (TR) |

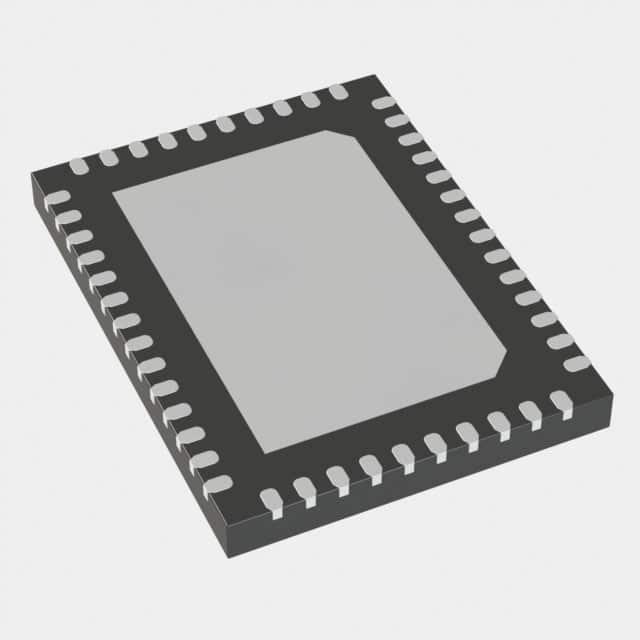

| Package / Case | 48-VFQFN Exposed Pad |
| Output Type | N-Channel |
| Mounting Type | Surface Mount |
| Number of Outputs | 1 |
| Interface | Logic |
| Switch Type | General Purpose |
| Operating Temperature | -40°C ~ 150°C |
| Output Configuration | High Side |
| Rds On (Typ) | 12mOhm |
| Input Type | Non-Inverting |
| Voltage - Load | - |
| Voltage - Supply (Vcc/Vdd) | 8V ~ 60V |
| Current - Output (Max) | 5.6A |
| Ratio - Input:Output | 1:1 |
| Supplier Device Package | 48-QFN (8x6) |
| Fault Protection | Current Limiting (Fixed), Over Load, Over Temperature, Reverse Current, Short Circuit, UVLO |
