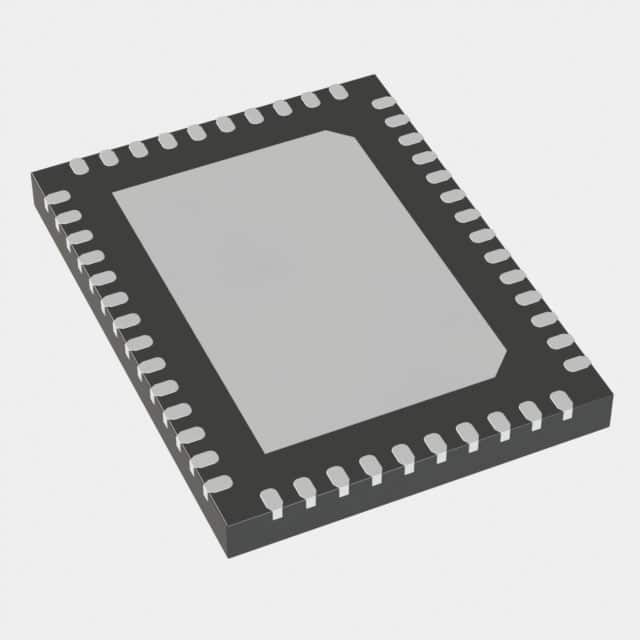

IPS1025HQ
HIGH EFFICIENCY, HIGH-SIDE SWITCManufacturer: STMicroelectronics
Categories: Power Distribution Switches, Load Drivers
Quality Control: Learn More
STMicroelectronics IPS1025HQ is a high-efficiency, high-side power switch designed for robust load management. This N-Channel device operates with a supply voltage range of 8V to 60V and delivers a continuous output current of up to 2.4A. Featuring integrated fault protection, including fixed current limiting, overload, over-temperature, reverse current, and short-circuit protection, along with undervoltage lockout (UVLO), it ensures reliable operation in demanding applications. The device offers a low ON-resistance of 12mOhm (typical) and interfaces via a logic-level input. Its 48-VFQFN exposed pad package (8x6) facilitates efficient heat dissipation for surface mounting. This component is suitable for use in automotive, industrial automation, and power supply applications requiring precise and protected power delivery.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 25 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Tape & Reel (TR) |
| Package / Case | 48-VFQFN Exposed Pad |
| Output Type | N-Channel |
| Mounting Type | Surface Mount |
| Number of Outputs | 1 |
| Interface | Logic |
| Switch Type | General Purpose |
| Operating Temperature | -40°C ~ 150°C |
| Output Configuration | High Side |
| Rds On (Typ) | 12mOhm |
| Input Type | Non-Inverting |
| Voltage - Load | - |
| Voltage - Supply (Vcc/Vdd) | 8V ~ 60V |
| Current - Output (Max) | 2.4A |
| Ratio - Input:Output | 1:1 |
| Supplier Device Package | 48-QFN (8x6) |
| Fault Protection | Current Limiting (Fixed), Over Load, Over Temperature, Reverse Current, Short Circuit, UVLO |
